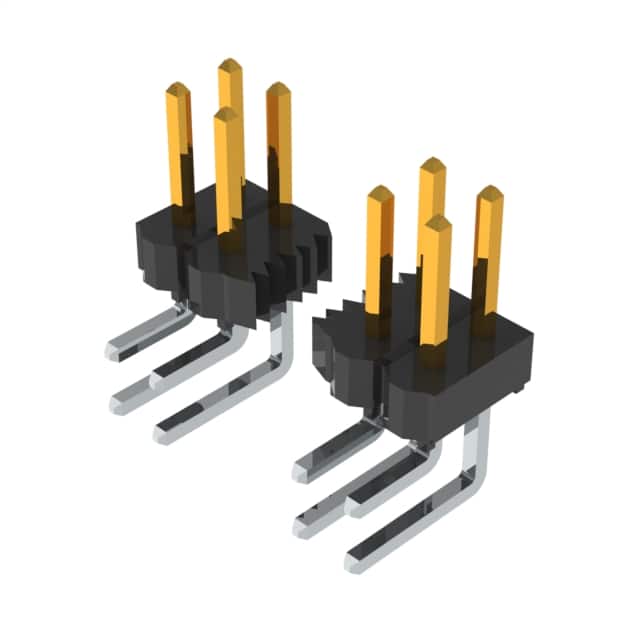

TSW-113-08-F-D-RA

Product Name TSW-113-08-F-D-RA

Manufacturer Samtec Inc.

Describe CONN HEADER R/A 26POS 2.54MM

Classification: Headers, Male Pins

Datesheet tsw_th.pdf
tsw-xxx-xx-xxx-x-xx-xxx-mkt.pdf

Stock 9999

Customer Reference

CONN HEADER R/A 26POS 2.54MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Contact Length - Mating

0.230" (5.84mm)

Contact Finish Thickness - Mating

3.00µin (0.076µm)

Connector Type

Header

Mfr

Samtec Inc.

Pitch - Mating

0.100" (2.54mm)

Number of Positions

Contact Length - Post

0.090" (2.29mm)

Voltage Rating

Applications

Number of Positions Loaded

All

Termination

Solder

Contact Shape

Square

Contact Finish - Post

Tin

Operating Temperature

-55°C ~ 125°C

Insulation Color

Black

Row Spacing - Mating

0.100" (2.54mm)

Mounting Type

Through Hole, Right Angle

Insulation Material

Polybutylene Terephthalate (PBT)

Contact Finish Thickness - Post

Series

TSW

Insulation Height

0.219" (5.56mm)

Contact Material

Phosphor Bronze

Base Product Number

TSW-113

Package

Bulk

Overall Contact Length

Contact Finish - Mating

Gold

Ingress Protection

Material Flammability Rating

UL94 V-0

Mated Stacking Heights

Product Status

Active

Number of Rows

Shrouding

Unshrouded

Fastening Type

Push-Pull

Style

Board to Board or Cable

Features

Contact Type

Male Pin

Current Rating (Amps)
