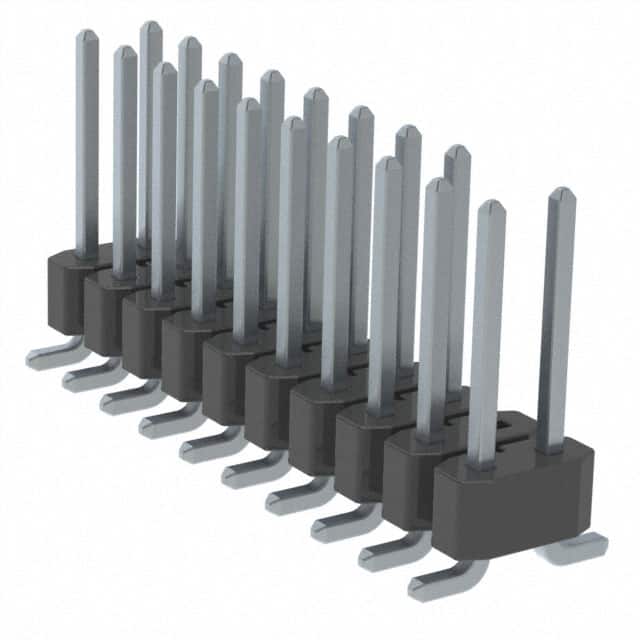

TSM-110-02-T-DV-004-TR

Product Name TSM-110-02-T-DV-004-TR

Manufacturer Samtec Inc.

Describe CONN HEADER SMD 20POS 2.54MM

Classification: Headers, Male Pins

Datesheet tsm.pdf
tsm-1xx-xx-xxx-xx-x-xxx-x-mkt.pdf

Stock 9999

Customer Reference

CONN HEADER SMD 20POS 2.54MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Material Flammability Rating

UL94 V-0

Features

Series

TSM

Row Spacing - Mating

0.100" (2.54mm)

Style

Board to Board or Cable

Fastening Type

Push-Pull

Product Status

Active

Mounting Type

Surface Mount

Contact Length - Mating

0.320" (8.13mm)

Contact Finish - Post

Tin

Insulation Material

Liquid Crystal Polymer (LCP)

Operating Temperature

-55°C ~ 105°C

Overall Contact Length

Contact Finish - Mating

Tin

Mated Stacking Heights

Pitch - Mating

0.100" (2.54mm)

Number of Positions

Number of Positions Loaded

Contact Length - Post

Contact Finish Thickness - Mating

Contact Finish Thickness - Post

Applications

Base Product Number

TSM-110

Package

Tape & Reel (TR)

Termination

Solder

Number of Rows

Contact Shape

Square

Current Rating (Amps)

Shrouding

Unshrouded

Mfr

Samtec Inc.

Connector Type

Header

Contact Type

Male Pin

Ingress Protection

Voltage Rating

Insulation Height

0.100" (2.54mm)

Contact Material

Phosphor Bronze

Insulation Color

Black
