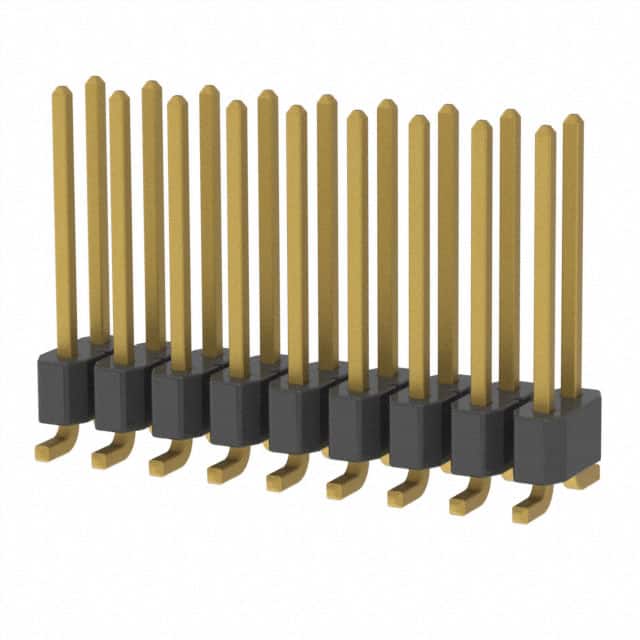

TSM-109-03-G-DV-P-TR

Product Name TSM-109-03-G-DV-P-TR

Manufacturer Samtec Inc.

Describe CONN HEADER SMD 18POS 2.54MM

Classification: Headers, Male Pins

Datesheet tsm.pdf
tsm-1xx-xx-xxx-xx-x-xxx-x-mkt.pdf

Stock 9999

Customer Reference

CONN HEADER SMD 18POS 2.54MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Package

Tape & Reel (TR)

Fastening Type

Push-Pull

Mated Stacking Heights

Insulation Color

Black

Series

TSM

Pitch - Mating

0.100" (2.54mm)

Features

Pick and Place

Voltage Rating

Base Product Number

TSM-109

Product Status

Active

Row Spacing - Mating

0.100" (2.54mm)

Number of Positions Loaded

All

Style

Board to Board or Cable

Mounting Type

Surface Mount

Overall Contact Length

Insulation Material

Liquid Crystal Polymer (LCP)

Connector Type

Header

Contact Length - Post

Contact Finish Thickness - Mating

10.0µin (0.25µm)

Applications

Number of Positions

Contact Finish - Mating

Gold

Contact Material

Phosphor Bronze

Ingress Protection

Current Rating (Amps)

Shrouding

Unshrouded

Termination

Solder

Contact Shape

Square

Material Flammability Rating

UL94 V-0

Mfr

Samtec Inc.

Operating Temperature

-55°C ~ 125°C

Number of Rows

Contact Finish Thickness - Post

3.00µin (0.076µm)

Contact Type

Male Pin

Insulation Height

0.100" (2.54mm)

Contact Finish - Post

Gold

Contact Length - Mating

0.420" (10.67mm)
