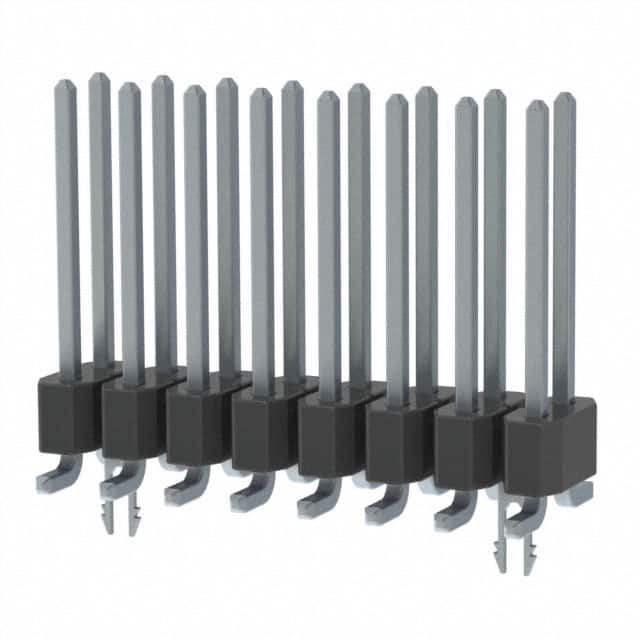

TSM-108-03-T-DV-LC

Product Name TSM-108-03-T-DV-LC

Manufacturer Samtec Inc.

Describe CONN HEADER SMD 16POS 2.54MM

Classification: Headers, Male Pins

Datesheet tsm.pdf
tsm-1xx-xx-xxx-xx-x-xxx-x-mkt.pdf

Stock 9999

Customer Reference

CONN HEADER SMD 16POS 2.54MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Package

Tube

Contact Type

Male Pin

Shrouding

Unshrouded

Contact Finish - Post

Tin

Operating Temperature

-55°C ~ 105°C

Mfr

Samtec Inc.

Number of Rows

Base Product Number

TSM-108

Pitch - Mating

0.100" (2.54mm)

Mounting Type

Surface Mount

Termination

Solder

Contact Finish Thickness - Mating

Contact Finish Thickness - Post

Fastening Type

Push-Pull

Contact Shape

Square

Contact Finish - Mating

Tin

Contact Material

Phosphor Bronze

Ingress Protection

Series

TSM

Number of Positions Loaded

All

Connector Type

Header

Features

Board Lock

Material Flammability Rating

UL94 V-0

Voltage Rating

Product Status

Active

Row Spacing - Mating

0.100" (2.54mm)

Contact Length - Mating

0.420" (10.67mm)

Insulation Color

Black

Mated Stacking Heights

Applications

Contact Length - Post

Overall Contact Length

Insulation Height

0.100" (2.54mm)

Number of Positions

Style

Board to Board or Cable

Insulation Material

Liquid Crystal Polymer (LCP)

Current Rating (Amps)
