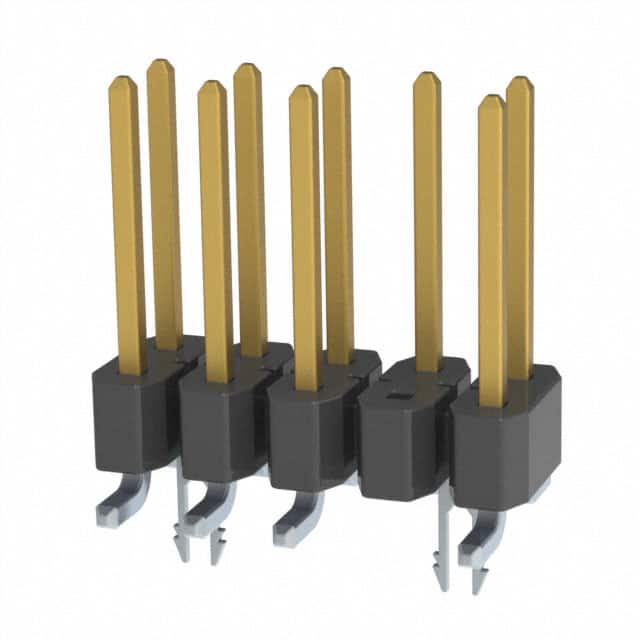

TSM-105-02-L-DV-LC-003

Product Name TSM-105-02-L-DV-LC-003

Manufacturer Samtec Inc.

Describe CONN HEADER SMD 10POS 2.54MM

Classification: Headers, Male Pins

Datesheet tsm.pdf
tsm-1xx-xx-xxx-xx-x-xxx-x-mkt.pdf

Stock 9999

Customer Reference

CONN HEADER SMD 10POS 2.54MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Shrouding

Unshrouded

Row Spacing - Mating

0.100" (2.54mm)

Overall Contact Length

Material Flammability Rating

UL94 V-0

Fastening Type

Push-Pull

Current Rating (Amps)

Number of Positions

Contact Material

Phosphor Bronze

Operating Temperature

-55°C ~ 125°C

Mated Stacking Heights

Applications

Base Product Number

TSM-105

Package

Tube

Mounting Type

Surface Mount

Termination

Solder

Ingress Protection

Series

TSM

Connector Type

Header

Contact Type

Male Pin

Voltage Rating

Pitch - Mating

0.100" (2.54mm)

Style

Board to Board or Cable

Contact Length - Post

Contact Finish Thickness - Mating

10.0µin (0.25µm)

Contact Finish - Post

Tin

Insulation Color

Black

Insulation Material

Liquid Crystal Polymer (LCP)

Product Status

Active

Contact Length - Mating

0.320" (8.13mm)

Features

Board Lock

Mfr

Samtec Inc.

Insulation Height

0.100" (2.54mm)

Contact Finish Thickness - Post

Number of Rows

Number of Positions Loaded

Contact Shape

Square

Contact Finish - Mating

Gold
