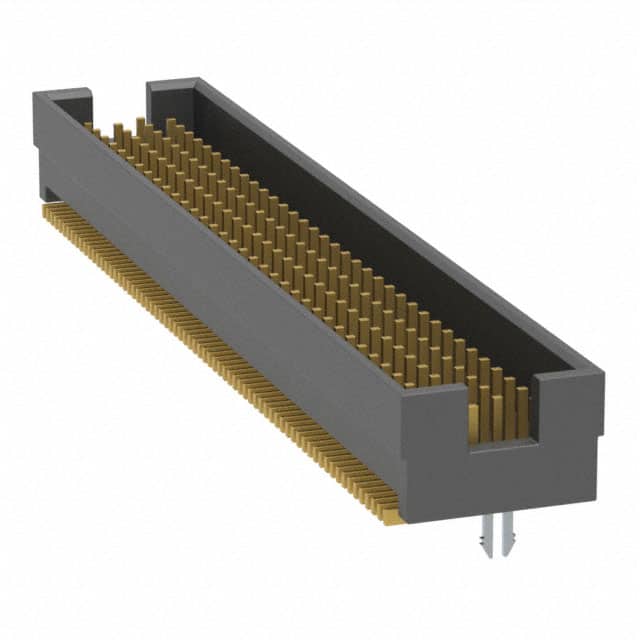

TOLC-135-02-S-Q-LC

Product Name TOLC-135-02-S-Q-LC

Manufacturer Samtec Inc.

Describe CONN HEADER SMD 140POS 1.27MM

Classification: Headers, Male Pins

Datesheet tolc.pdf
tolc-1xx-xx-x-q-xx-footprint.pdf
tolc-1xx-xx-x-q-xx-mkt.pdf

Stock 9999

Customer Reference

CONN HEADER SMD 140POS 1.27MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Contact Length - Mating

0.100" (2.54mm)

Connector Type

Header

Number of Positions

140

Contact Finish - Mating

Gold

Contact Finish Thickness - Post

3.00µin (0.076µm)

Pitch - Mating

0.050" (1.27mm)

Material Flammability Rating

UL94 V-0

Mated Stacking Heights

6.35mm

Style

Board to Board

Contact Shape

Square

Contact Finish - Post

Gold

Operating Temperature

-55°C ~ 125°C

Row Spacing - Mating

0.050" (1.27mm)

Number of Positions Loaded

All

Termination

Solder

Insulation Height

0.220" (5.60mm)

Base Product Number

TOLC-135

Fastening Type

Push-Pull

Overall Contact Length

Ingress Protection

Mfr

Samtec Inc.

Product Status

Active

Contact Type

Male Pin

Shrouding

Shrouded - 4 Wall

Insulation Color

Black

Current Rating (Amps)

2.4A per Contact

Series

FOURRAY™ TOLC

Number of Rows

Contact Finish Thickness - Mating

30.0µin (0.76µm)

Insulation Material

Liquid Crystal Polymer (LCP)

Mounting Type

Surface Mount

Contact Length - Post

Features

Board Lock

Voltage Rating

Applications

Package

Tube

Contact Material

Phosphor Bronze
