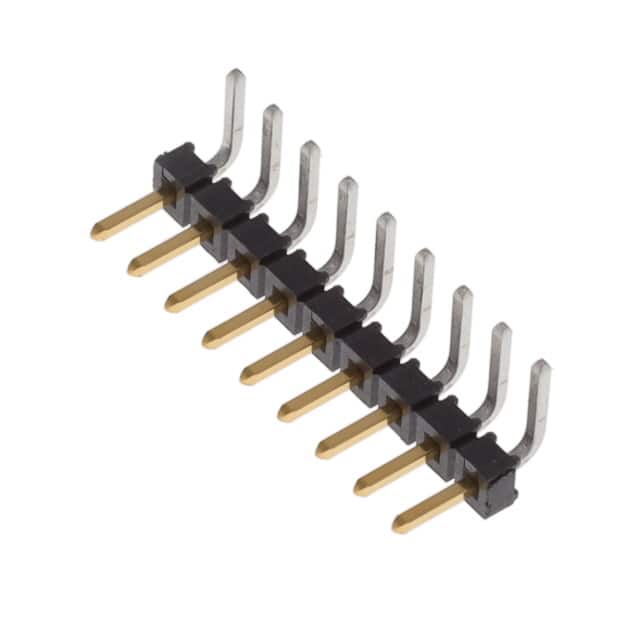

TMM-109-01-F-S-RA

Product Name TMM-109-01-F-S-RA

Manufacturer Samtec Inc.

Describe 2MM TERMINAL STRIP

Classification: Headers, Male Pins

Datesheet tmm_th.pdf
tmm-1xx-xx-xx-x-ra-xxx-mkt.pdf

Stock 9999

Customer Reference

2MM TERMINAL STRIP

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Fastening Type

Push-Pull

Contact Finish Thickness - Post

Features

Number of Positions

Series

TMM

Style

Board to Board or Cable

Contact Length - Post

0.120" (3.05mm)

Overall Contact Length

Contact Finish Thickness - Mating

3.00µin (0.076µm)

Voltage Rating

Package

Bulk

Mounting Type

Through Hole, Right Angle

Contact Shape

Square

Material Flammability Rating

Connector Type

Header

Contact Finish - Mating

Gold

Operating Temperature

-55°C ~ 125°C

Base Product Number

TMM-109

Product Status

Active

Contact Type

Male Pin

Shrouding

Unshrouded

Termination

Solder

Contact Length - Mating

0.126" (3.20mm)

Insulation Material

Liquid Crystal Polymer (LCP)

Applications

Number of Rows

Insulation Height

0.079" (2.00mm)

Mfr

Samtec Inc.

Row Spacing - Mating

Number of Positions Loaded

All

Contact Finish - Post

Tin

Contact Material

Phosphor Bronze

Ingress Protection

Mated Stacking Heights

Insulation Color

Black

Current Rating (Amps)

3.2A per Contact

Pitch - Mating

0.079" (2.00mm)
