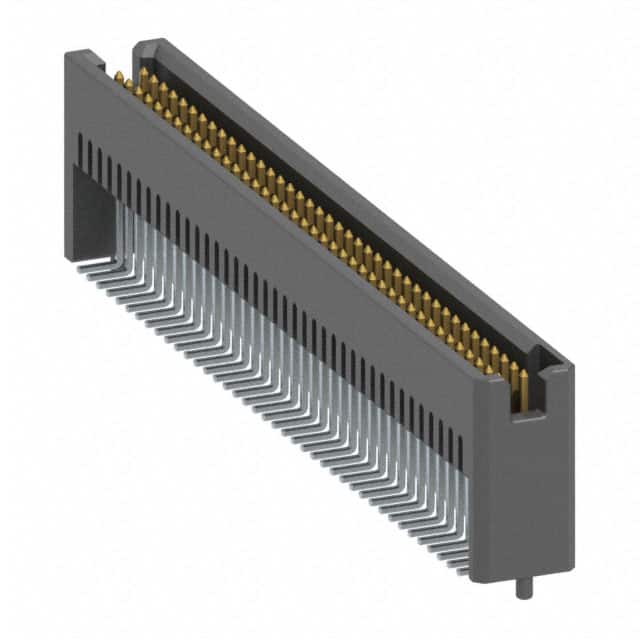

TFM-140-32-S-D-A-P-TR

Product Name TFM-140-32-S-D-A-P-TR

Manufacturer Samtec Inc.

Describe CONN HEADER SMD 80POS 1.27MM

Classification: Headers, Male Pins

Datesheet tfm-1xx-x2-xxx-d-xx-footprint.pdf
tfm.pdf
tfm-1xx-xx-xxx-d-xxx-x-xx-mkt.pdf

Stock 9999

Customer Reference

CONN HEADER SMD 80POS 1.27MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Features

Board Guide, Pick and Place

Voltage Rating

275VAC

Contact Shape

Square

Contact Finish - Post

Tin

Series

Tiger Eye™ TFM

Connector Type

Header

Number of Positions

Style

Board to Board or Cable

Shrouding

Shrouded - 4 Wall

Overall Contact Length

Contact Finish - Mating

Gold

Insulation Material

Liquid Crystal Polymer (LCP)

Pitch - Mating

0.050" (1.27mm)

Number of Rows

Termination

Solder

Product Status

Active

Contact Type

Male Pin

Contact Finish Thickness - Post

Mfr

Samtec Inc.

Row Spacing - Mating

0.050" (1.27mm)

Fastening Type

Push-Pull

Contact Finish Thickness - Mating

30.0µin (0.76µm)

Contact Material

Phosphor Bronze

Base Product Number

TFM-140

Operating Temperature

-55°C ~ 125°C

Current Rating (Amps)

2.9A per Contact

Mated Stacking Heights

Package

Tape & Reel (TR)

Mounting Type

Surface Mount

Contact Length - Mating

0.139" (3.53mm)

Contact Length - Post

Insulation Height

0.435" (11.05mm)

Ingress Protection

Material Flammability Rating

UL94 V-0

Insulation Color

Black

Number of Positions Loaded

All

Applications
