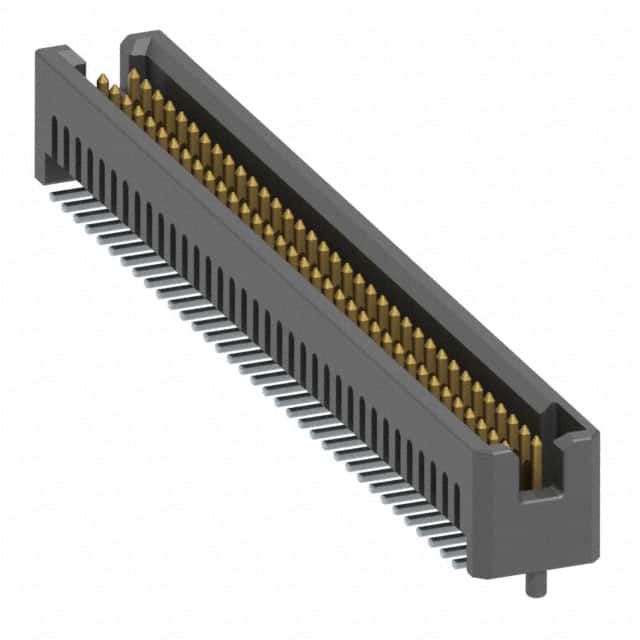

TFM-135-02-L-D-A-TR

Product Name TFM-135-02-L-D-A-TR

Manufacturer Samtec Inc.

Describe CONN HEADER SMD 70POS 1.27MM

Classification: Headers, Male Pins

Datesheet

Stock 9999

Customer Reference

CONN HEADER SMD 70POS 1.27MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Number of Positions Loaded

All

Insulation Height

0.220" (5.60mm)

Contact Length - Mating

0.131" (3.33mm)

Mounting Type

Surface Mount

Contact Finish Thickness - Mating

15.0µin (0.38µm)

Pitch - Mating

0.050" (1.27mm)

Row Spacing - Mating

0.050" (1.27mm)

Package

Tape & Reel (TR)

Fastening Type

Push-Pull

Current Rating (Amps)

2.9A per Contact

Mfr

Samtec Inc.

Series

Tiger Eye™ TFM

Connector Type

Header

Contact Type

Male Pin

Number of Rows

Termination

Solder

Overall Contact Length

Contact Shape

Square

Contact Material

Phosphor Bronze

Insulation Material

Liquid Crystal Polymer (LCP)

Ingress Protection

Base Product Number

TFM-135

Contact Finish - Post

Tin

Product Status

Active

Operating Temperature

-55°C ~ 125°C

Style

Board to Board or Cable

Shrouding

Shrouded - 4 Wall

Contact Length - Post

Contact Finish - Mating

Gold

Features

Board Guide

Mated Stacking Heights

Number of Positions

Material Flammability Rating

UL94 V-0

Contact Finish Thickness - Post

Insulation Color

Black

Voltage Rating

275VAC

Applications
