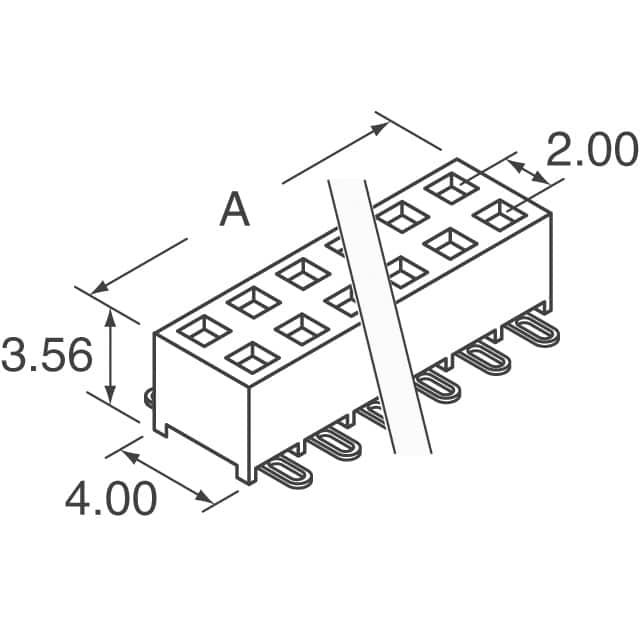

SMM-115-02-S-D-LC-K-TR

Product Name SMM-115-02-S-D-LC-K-TR

Manufacturer Samtec Inc.

Describe CONN RCPT 30POS 0.079 GOLD SMD

Classification: Headers, Receptacles, Female Sockets

Datesheet smm-d.pdf
smm.pdf
smm-1xx-xx-xx-d-xx-xx-x-xx-mkt.pdf

Stock 9999

Customer Reference

CONN RCPT 30POS 0.079 GOLD SMD

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Insulation Height

0.140" (3.56mm)

Mfr

Samtec Inc.

Number of Positions

Row Spacing - Mating

0.079" (2.00mm)

Material Flammability Rating

UL94 V-0

Series

Tiger Eye™ SMM

Connector Type

Receptacle

Number of Positions Loaded

All

Contact Material

Beryllium Copper

Product Status

Active

Insulation Color

Black

Pitch - Mating

0.079" (2.00mm)

Applications

Contact Shape

Square

Style

Board to Board or Cable

Fastening Type

Push-Pull

Base Product Number

SMM-115

Contact Finish - Mating

Gold

Ingress Protection

Voltage Rating

350VAC

Termination

Solder

Contact Finish Thickness - Mating

30.0µin (0.76µm)

Mated Stacking Heights

Features

Board Lock, Pick and Place

Contact Finish Thickness - Post

Contact Type

Female Socket

Number of Rows

Mounting Type

Surface Mount

Contact Finish - Post

Tin

Current Rating (Amps)

3.2A per Contact

Insulation Material

Liquid Crystal Polymer (LCP)

Package

Tape & Reel (TR)^^Cut Tape (CT)

Contact Length - Post

Operating Temperature

-55°C ~ 125°C
