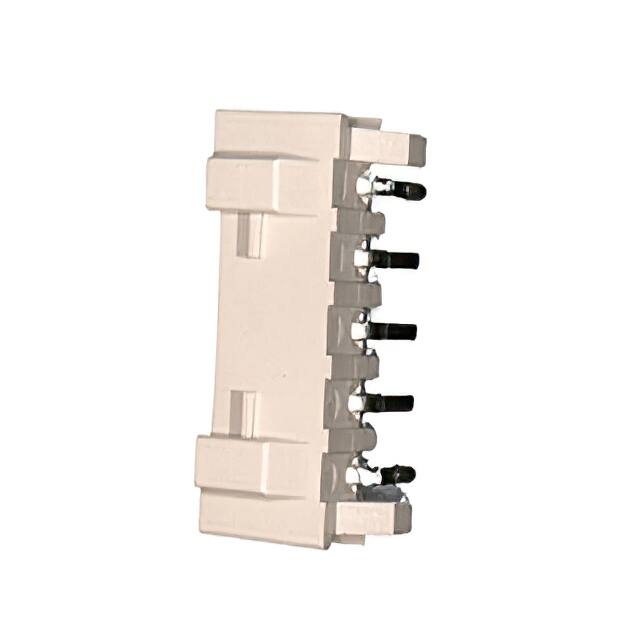

SMH25-05WL
SMH25-05WL
SMH25-05WL
Favorite Products
SMH25-05WL
SMH25-05WL
JAM
2.5 MM W TO B CONNECTOR 5P WAFER
Headers, Male Pins
SMH.pdf
9999
2.5 MM W TO B CONNECTOR 5P WAFER
9999 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Material Flammability Rating
UL94 V-0
Voltage Rating
250VAC/DC
Mfr
JAM
Series
SMH
Package
Bulk
Number of Positions Loaded
All
Contact Material
Brass
Contact Finish Thickness - Post
-
Shrouding
Shrouded - 4 Wall
Mounting Type
Through Hole, Right Angle
Contact Finish - Mating
Tin
Features
-
Operating Temperature
-40°C ~ 85°C
Connector Type
Header
Contact Type
Male Pin
Pitch - Mating
0.098" (2.50mm)
Row Spacing - Mating
-
Termination
Press-Fit, Solder
Contact Length - Mating
-
Contact Shape
Square
Contact Finish Thickness - Mating
-
Applications
-
Product Status
Active
Number of Positions
5
Style
Board to Cable/Wire
Overall Contact Length
-
Insulation Height
0.291" (7.40mm)
Insulation Color
White
Number of Rows
1
Ingress Protection
-
Mated Stacking Heights
-
Fastening Type
Latch Holder
Contact Finish - Post
Tin
Current Rating (Amps)
3A
Contact Length - Post
0.126" (3.20mm)
Insulation Material
Polyamide (PA66), Nylon 6/6, Glass Filled
