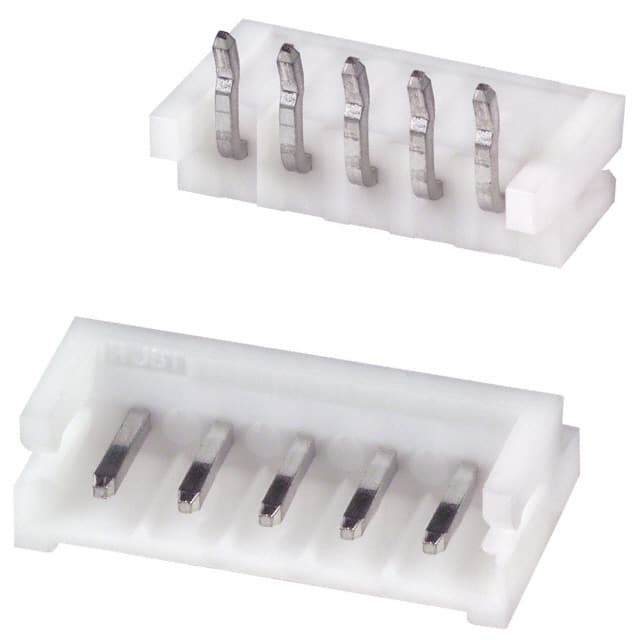

S5B-EH-LF-SN

Product Name S5B-EH-LF-SN

Manufacturer JST Sales America Inc.

Describe CONN HEADER R/A 5POS 2.5MM

Classification: Headers, Male Pins

Datesheet eEH.pdf

Stock 9999

Customer Reference

CONN HEADER R/A 5POS 2.5MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Contact Type

Male Pin

Ingress Protection

Package

Bulk

Current Rating (Amps)

Series

Pitch - Mating

0.098" (2.50mm)

Overall Contact Length

Row Spacing - Mating

Termination

Press-Fit, Solder

Fastening Type

Latch Lock

Contact Length - Mating

0.157" (4.00mm)

Contact Length - Post

0.126" (3.20mm)

Product Status

Active

Number of Rows

Style

Board to Cable/Wire

Mounting Type

Through Hole, Right Angle

Contact Finish Thickness - Mating

Number of Positions Loaded

All

Insulation Height

0.165" (4.20mm)

Insulation Material

Polyamide (PA66), Nylon 6/6

Number of Positions

Contact Material

Brass

Operating Temperature

-25°C ~ 85°C

Contact Shape

Square

Contact Finish - Post

Tin

Insulation Color

Natural

Applications

Base Product Number

S5B-EH(L

Mfr

JST Sales America Inc.

Connector Type

Header

Contact Finish - Mating

Tin

Material Flammability Rating

UL94 V-0

Shrouding

Shrouded - 3 Wall

Features

Voltage Rating

250V

Mated Stacking Heights

Contact Finish Thickness - Post
