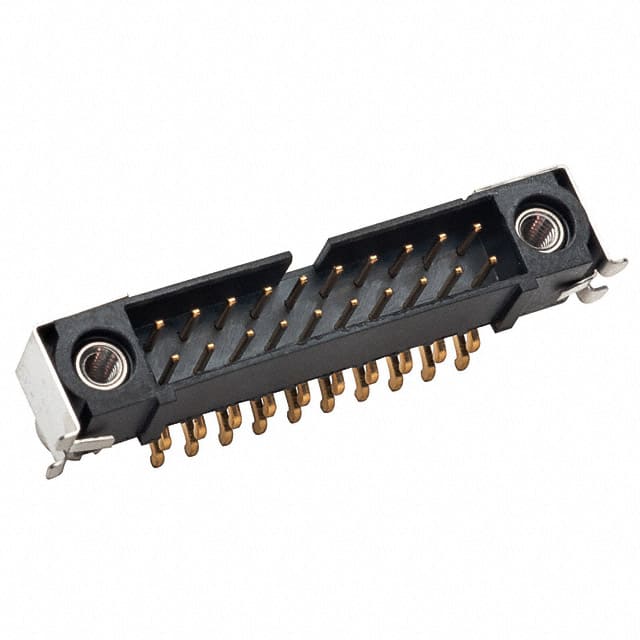

M80-5S22005MQ

Product Name M80-5S22005MQ

Manufacturer Harwin Inc.

Describe CONN HEADER SMD R/A 20POS 2MM

Classification: Headers, Male Pins

Datesheet C005XX_M80_and_M83_Datamate_Series_Connectors.pdf
M80-5S2XXXXMQ.pdf

Stock 9999

Customer Reference

CONN HEADER SMD R/A 20POS 2MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Voltage Rating

800V

Applications

Features

Keying Slot, Mating Flange, Mating Hardware, Solder Retention

Number of Positions Loaded

All

Contact Finish Thickness - Mating

29.5µin (0.75µm)

Contact Material

Brass

Ingress Protection

Contact Finish Thickness - Post

29.5µin (0.75µm)

Insulation Material

Polyphenylene Sulfide (PPS), Glass Filled

Product Status

Active

Connector Type

Header

Number of Rows

Shrouding

Shrouded - 4 Wall

Overall Contact Length

Row Spacing - Mating

0.079" (2.00mm)

Contact Finish - Mating

Gold

Base Product Number

M80-5S2

Mfr

Harwin Inc.

Package

Bulk

Contact Length - Mating

Contact Finish - Post

Gold

Current Rating (Amps)

2.2A per Contact

Series

Datamate J-Tek

Style

Board to Board or Cable

Termination

Solder

Fastening Type

Threaded

Mounting Type

Surface Mount, Right Angle

Contact Shape

Circular

Material Flammability Rating

UL94 V-0

Insulation Color

Black

Contact Length - Post

Insulation Height

0.246" (6.25mm)

Mated Stacking Heights

Contact Type

Male Pin

Pitch - Mating

0.079" (2.00mm)

Number of Positions

Operating Temperature

-55°C ~ 125°C
