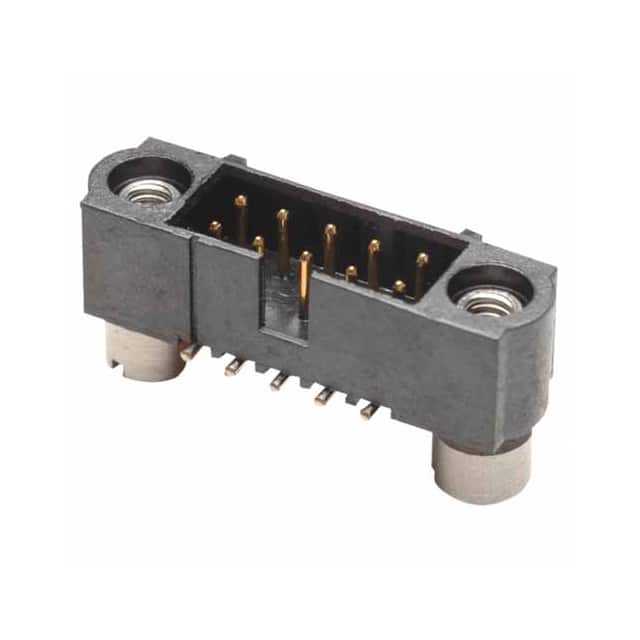

M80-5121622

Product Name M80-5121622

Manufacturer Harwin Inc.

Describe CONN HEADER SMD 16POS 2MM

Classification: Headers, Male Pins

Datesheet C005XX_M80_and_M83_Datamate_Series_Connectors.pdf
M80-512.pdf

Stock 9999

Customer Reference

CONN HEADER SMD 16POS 2MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Mfr

Harwin Inc.

Row Spacing - Mating

0.079" (2.00mm)

Shrouding

Shrouded - 4 Wall

Pitch - Mating

0.079" (2.00mm)

Product Status

Active

Fastening Type

Threaded

Contact Shape

Circular

Features

Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware

Current Rating (Amps)

2.2A

Contact Type

Male Pin

Contact Finish - Mating

Gold

Ingress Protection

Applications

Number of Rows

Mounting Type

Surface Mount

Insulation Material

Polyphenylene Sulfide (PPS), Glass Filled

Number of Positions

Style

Board to Board or Cable

Contact Length - Post

Contact Finish Thickness - Mating

30.0µin (0.76µm)

Material Flammability Rating

UL94 V-0

Termination

Solder

Contact Length - Mating

Overall Contact Length

Voltage Rating

800V

Insulation Height

0.234" (5.95mm)

Contact Finish - Post

Tin-Lead

Insulation Color

Black

Mated Stacking Heights

7.55mm, 7.95mm, 10.1mm, 11.1mm, 13.65mm, 15.1mm

Base Product Number

M80-512

Series

Datamate J-Tek

Connector Type

Header

Number of Positions Loaded

All

Package

Tube

Contact Material

Phosphor Bronze

Operating Temperature

-55°C ~ 125°C

Contact Finish Thickness - Post

118.1µin (3.00µm)
