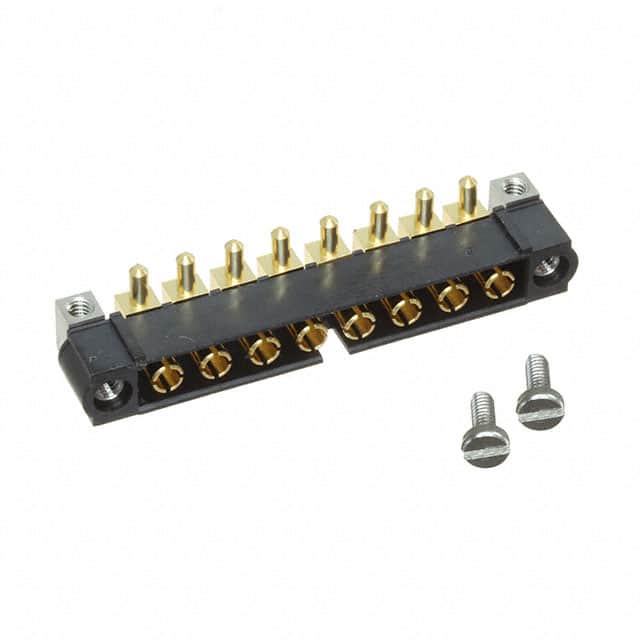

M80-5000000M5-08-333-00-000

Product Name M80-5000000M5-08-333-00-000

Manufacturer Harwin Inc.

Describe CONN HEADER R/A 8POS 4MM

Classification: Headers, Male Pins

Datesheet C005XX_M80_and_M83_Datamate_Series_Connectors.pdf
M80-5000000M5-XX-XXX-00-000.pdf
Harwin_PC_Datamate.pdf

Stock 9999

Customer Reference

CONN HEADER R/A 8POS 4MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Series

Datamate Mix-Tek

Operating Temperature

-55°C ~ 125°C

Pitch - Mating

0.157" (4.00mm)

Number of Positions Loaded

All

Product Status

Active

Overall Contact Length

Row Spacing - Mating

Style

Board to Cable/Wire

Fastening Type

Threaded

Contact Length - Post

0.138" (3.50mm)

Contact Finish Thickness - Mating

10.0µin (0.25µm)

Ingress Protection

Base Product Number

M80-5000000M5

Contact Shape

Circular

Material Flammability Rating

UL94 V-0

Contact Finish Thickness - Post

Current Rating (Amps)

20A

Mated Stacking Heights

Mfr

Harwin Inc.

Connector Type

Header

Contact Type

Male Pin, Power

Number of Positions

Contact Finish - Post

Features

Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware

Mounting Type

Through Hole, Right Angle

Insulation Material

Polyphenylene Sulfide (PPS), Glass Filled

Number of Rows

Insulation Height

0.218" (5.55mm)

Voltage Rating

800V

Package

Tube

Shrouding

Shrouded - 4 Wall

Contact Material

Copper Alloy

Insulation Color

Black

Applications

Termination

Solder

Contact Length - Mating

Contact Finish - Mating

Gold
