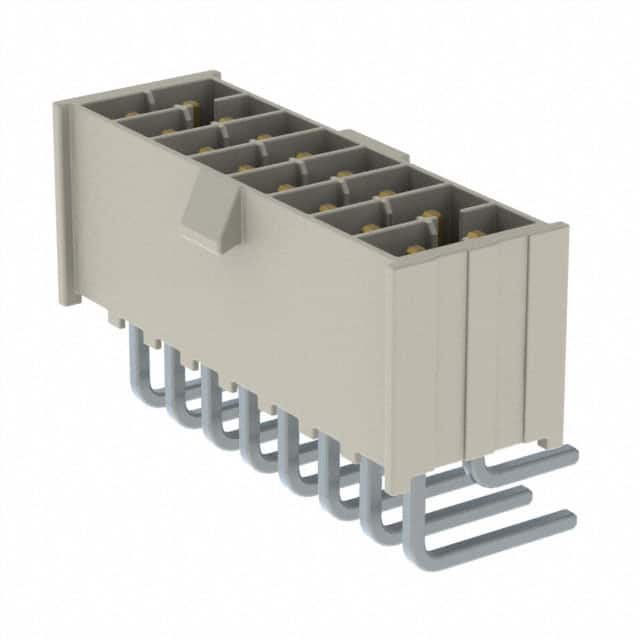

IPL1-108-01-L-D-RA-K

Product Name IPL1-108-01-L-D-RA-K

Manufacturer Samtec Inc.

Describe CONN HEADER R/A 16POS 2.54MM

Classification: Headers, Male Pins

Datesheet ipl1.pdf
ipl1-1xx-xx-xxx-d-xx-x-xx-mkt.pdf

Stock 9999

Customer Reference

CONN HEADER R/A 16POS 2.54MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Number of Rows

Fastening Type

Locking Ramp

Series

Mini Mate® IPL1

Overall Contact Length

Contact Shape

Square

Contact Material

Phosphor Bronze

Insulation Color

Natural

Contact Finish Thickness - Post

Mfr

Samtec Inc.

Package

Tube

Number of Positions

Contact Finish - Mating

Gold

Product Status

Active

Connector Type

Header

Material Flammability Rating

UL94 V-0

Shrouding

Shrouded - 4 Wall

Contact Length - Mating

0.215" (5.46mm)

Contact Length - Post

0.085" (2.16mm)

Contact Finish Thickness - Mating

10.0µin (0.25µm)

Features

Mated Stacking Heights

Contact Type

Male Pin

Pitch - Mating

0.100" (2.54mm)

Number of Positions Loaded

All

Mounting Type

Through Hole, Right Angle

Contact Finish - Post

Tin

Base Product Number

IPL1-108

Style

Board to Cable/Wire

Operating Temperature

-55°C ~ 125°C

Voltage Rating

675VAC, 954VDC

Insulation Height

0.290" (7.37mm)

Ingress Protection

Applications

Row Spacing - Mating

0.100" (2.54mm)

Termination

Solder

Insulation Material

Liquid Crystal Polymer (LCP)

Current Rating (Amps)
