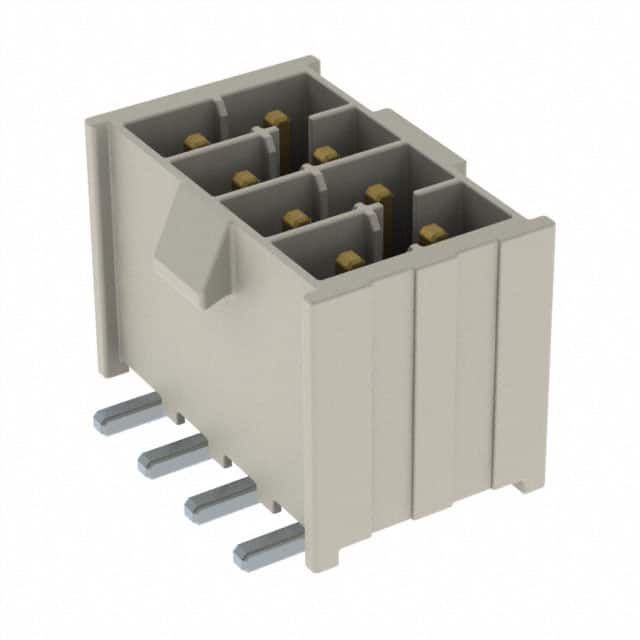

IPL1-104-02-L-D-K-TR

Product Name IPL1-104-02-L-D-K-TR

Manufacturer Samtec Inc.

Describe CONN HEADER SMD 8POS 2.54MM

Classification: Headers, Male Pins

Datesheet

Stock 9999

Customer Reference

CONN HEADER SMD 8POS 2.54MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Number of Positions

Mounting Type

Surface Mount

Number of Positions Loaded

All

Mated Stacking Heights

Package

Tape & Reel (TR)^^Cut Tape (CT)

Contact Type

Male Pin

Row Spacing - Mating

0.100" (2.54mm)

Style

Board to Cable/Wire

Fastening Type

Locking Ramp

Contact Length - Post

Overall Contact Length

Contact Finish Thickness - Mating

10.0µin (0.25µm)

Contact Material

Phosphor Bronze

Insulation Material

Liquid Crystal Polymer (LCP)

Ingress Protection

Series

Mini Mate® IPL1

Shrouding

Shrouded - 4 Wall

Termination

Solder

Features

Product Status

Active

Connector Type

Header

Insulation Height

0.320" (8.13mm)

Contact Finish Thickness - Post

Number of Rows

Contact Shape

Square

Mfr

Samtec Inc.

Contact Length - Mating

0.215" (5.46mm)

Contact Finish - Post

Tin

Insulation Color

Natural

Pitch - Mating

0.100" (2.54mm)

Operating Temperature

-55°C ~ 125°C

Current Rating (Amps)

Voltage Rating

675VAC, 954VDC

Applications

Contact Finish - Mating

Gold

Material Flammability Rating

UL94 V-0

Base Product Number

IPL1-104
