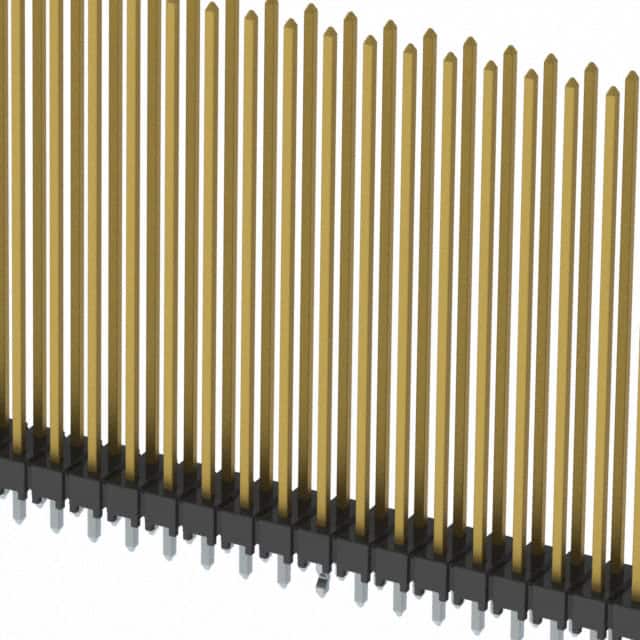

HTSW-136-21-F-D-LL

Product Name HTSW-136-21-F-D-LL

Manufacturer Samtec Inc.

Describe CONN HEADER VERT 72POS 2.54MM

Classification: Headers, Male Pins

Datesheet

Stock 9999

Customer Reference

CONN HEADER VERT 72POS 2.54MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Style

Board to Board or Cable

Number of Rows

Features

Voltage Rating

Applications

Mfr

Samtec Inc.

Row Spacing - Mating

0.100" (2.54mm)

Contact Finish Thickness - Post

Base Product Number

HTSW-136

Series

HTSW

Shrouding

Unshrouded

Overall Contact Length

1.430" (36.32mm)

Insulation Height

0.100" (2.54mm)

Contact Finish - Mating

Gold

Insulation Material

Liquid Crystal Polymer (LCP)

Operating Temperature

-55°C ~ 125°C

Contact Finish - Post

Tin

Contact Finish Thickness - Mating

3.00µin (0.076µm)

Contact Material

Phosphor Bronze

Insulation Color

Natural

Number of Positions Loaded

All

Termination

Kinked Pin, Solder

Package

Bulk

Product Status

Active

Mounting Type

Through Hole

Contact Length - Post

0.110" (2.79mm)

Connector Type

Header

Contact Type

Male Pin

Pitch - Mating

0.100" (2.54mm)

Contact Length - Mating

1.220" (30.99mm)

Contact Shape

Square

Current Rating (Amps)

Varies by Wire Gauge

Number of Positions

Fastening Type

Push-Pull

Ingress Protection

Material Flammability Rating

UL94 V-0

Mated Stacking Heights
