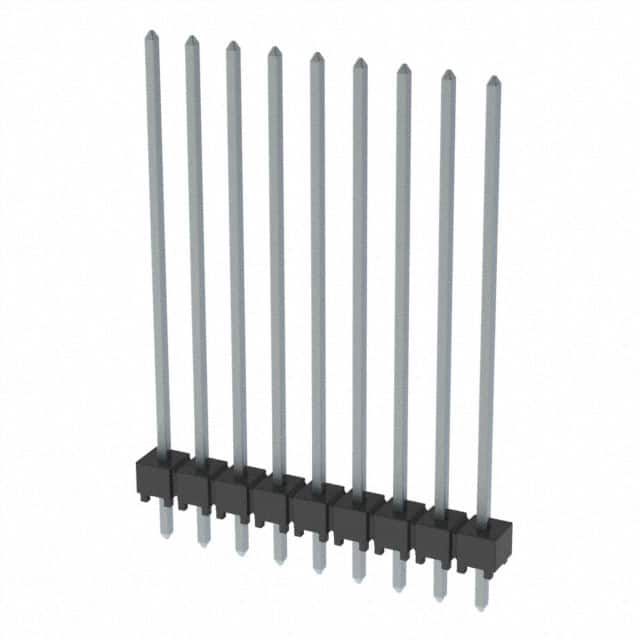

HTSW-109-20-T-S

Product Name HTSW-109-20-T-S

Manufacturer Samtec Inc.

Describe CONN HEADER VERT 9POS 2.54MM

Classification: Headers, Male Pins

Datesheet

Stock 9999

Customer Reference

CONN HEADER VERT 9POS 2.54MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Number of Positions

Connector Type

Header

Contact Material

Phosphor Bronze

Contact Finish - Mating

Tin

Mounting Type

Through Hole

Contact Length - Post

0.110" (2.79mm)

Contact Shape

Square

Contact Finish Thickness - Mating

Contact Finish - Post

Tin

Insulation Material

Liquid Crystal Polymer (LCP)

Contact Finish Thickness - Post

Mfr

Samtec Inc.

Shrouding

Unshrouded

Applications

Contact Type

Male Pin

Pitch - Mating

0.100" (2.54mm)

Termination

Solder

Contact Length - Mating

1.020" (25.91mm)

Features

Operating Temperature

-55°C ~ 105°C

Overall Contact Length

1.230" (31.24mm)

Ingress Protection

Material Flammability Rating

UL94 V-0

Series

HTSW

Number of Rows

Number of Positions Loaded

All

Fastening Type

Push-Pull

Insulation Height

0.100" (2.54mm)

Insulation Color

Natural

Package

Bulk

Product Status

Active

Mated Stacking Heights

Row Spacing - Mating

Style

Board to Board or Cable

Current Rating (Amps)

Varies by Wire Gauge

Voltage Rating

Base Product Number

HTSW-109
