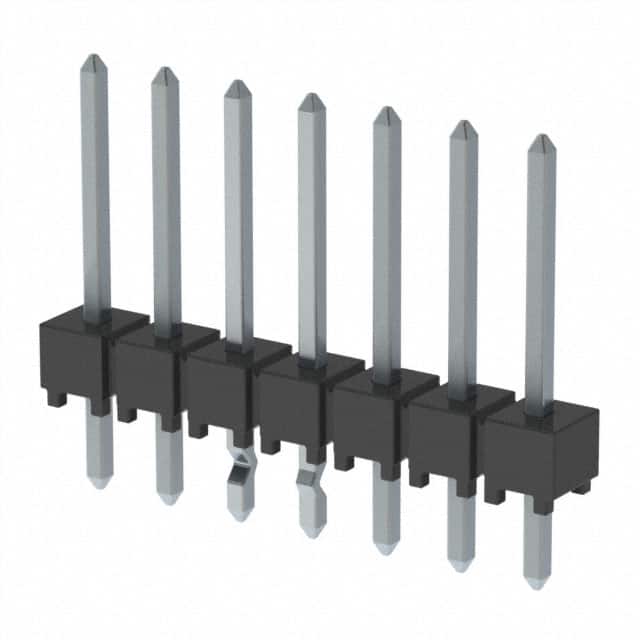

HTSW-107-14-T-S-LL

Product Name HTSW-107-14-T-S-LL

Manufacturer Samtec Inc.

Describe CONN HEADER VERT 7POS 2.54MM

Classification: Headers, Male Pins

Datesheet

Stock 9999

Customer Reference

CONN HEADER VERT 7POS 2.54MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Contact Finish Thickness - Post

Mfr

Samtec Inc.

Contact Length - Mating

0.320" (8.13mm)

Insulation Height

0.100" (2.54mm)

Ingress Protection

Number of Positions Loaded

All

Insulation Material

Liquid Crystal Polymer (LCP)

Current Rating (Amps)

Varies by Wire Gauge

Connector Type

Header

Mounting Type

Through Hole

Contact Finish Thickness - Mating

Number of Positions

Series

HTSW

Product Status

Active

Package

Bulk

Number of Rows

Contact Material

Phosphor Bronze

Features

Material Flammability Rating

UL94 V-0

Voltage Rating

Contact Shape

Square

Fastening Type

Push-Pull

Contact Length - Post

0.110" (2.79mm)

Overall Contact Length

0.530" (13.46mm)

Contact Finish - Mating

Tin

Shrouding

Unshrouded

Mated Stacking Heights

Pitch - Mating

0.100" (2.54mm)

Style

Board to Board or Cable

Termination

Kinked Pin, Solder

Contact Finish - Post

Tin

Row Spacing - Mating

Base Product Number

HTSW-107

Contact Type

Male Pin

Operating Temperature

-55°C ~ 105°C

Insulation Color

Natural

Applications
