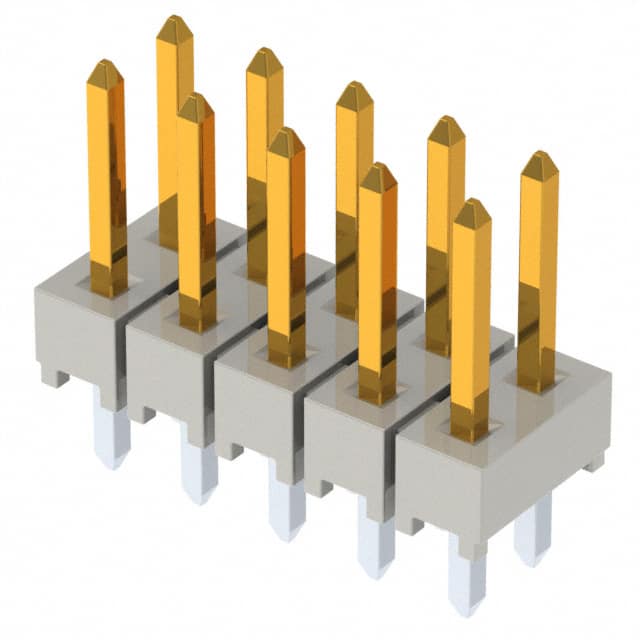

HTSW-105-07-F-D

Product Name HTSW-105-07-F-D

Manufacturer Samtec Inc.

Describe CONN HEADER VERT 10POS 2.54MM

Classification: Headers, Male Pins

Datesheet

Stock 9999

Customer Reference

CONN HEADER VERT 10POS 2.54MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Connector Type

Header

Base Product Number

HTSW-105

Series

HTSW

Pitch - Mating

0.100" (2.54mm)

Number of Positions Loaded

All

Mounting Type

Through Hole

Contact Finish Thickness - Mating

3.00µin (0.076µm)

Applications

Number of Rows

Fastening Type

Push-Pull

Material Flammability Rating

UL94 V-0

Package

Bag

Insulation Color

Natural

Mfr

Samtec Inc.

Contact Length - Post

0.100" (2.54mm)

Ingress Protection

Mated Stacking Heights

Contact Type

Male Pin

Row Spacing - Mating

0.100" (2.54mm)

Style

Board to Board or Cable

Insulation Material

Liquid Crystal Polymer (LCP)

Features

Product Status

Active

Overall Contact Length

0.430" (10.92mm)

Contact Finish - Post

Tin

Operating Temperature

-55°C ~ 125°C

Shrouding

Unshrouded

Contact Material

Phosphor Bronze

Contact Finish Thickness - Post

Number of Positions

Termination

Solder

Contact Length - Mating

0.230" (5.84mm)

Current Rating (Amps)

Varies by Wire Gauge

Voltage Rating

Insulation Height

0.100" (2.54mm)

Contact Shape

Square

Contact Finish - Mating

Gold
