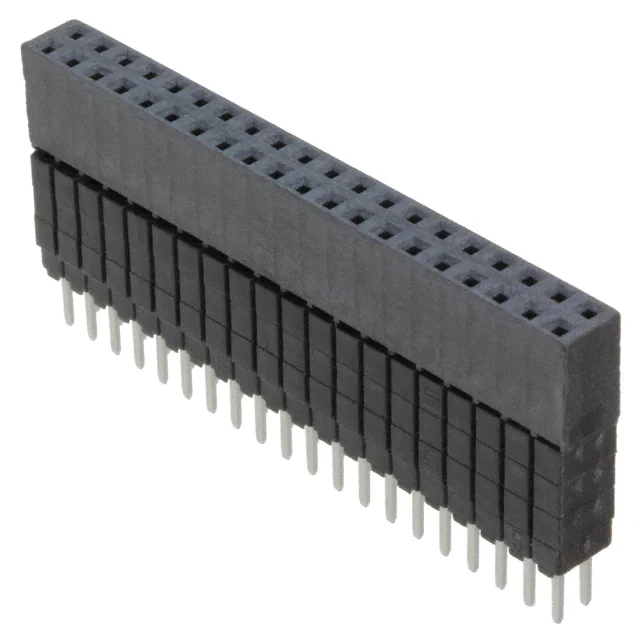

ESW-120-44-L-D

Product Name ESW-120-44-L-D

Manufacturer Samtec Inc.

Describe CONN SOCKET 40POS 0.1 GOLD PCB

Classification: Rectangular Connectors - Headers, Receptacles, Female Sockets

Datesheet esw_th.pdf
esw-1xx-xx-x-x-xx-xx-mkt.pdf

Stock 9999

Customer Reference

CONN SOCKET 40POS 0.1 GOLD PCB

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Mounting Type

Through Hole

Contact Type

Forked

Number of Positions Loaded

All

Contact Finish Thickness - Mating

10.0µin (0.25µm)

Termination

Solder

Applications

Style

Board to Board

Fastening Type

Push-Pull

Mated Stacking Heights

Number of Rows

Ingress Protection

Product Status

Active

Contact Finish - Mating

Gold

Contact Finish Thickness - Post

Voltage Rating

550VAC

Connector Type

Elevated Socket

Number of Positions

Contact Finish - Post

Tin

Package

Tube

Pitch - Mating

0.100" (2.54mm)

Row Spacing - Mating

0.100" (2.54mm)

Insulation Color

Black

Contact Length - Post

0.180" (4.57mm)

Material Flammability Rating

UL94 V-0

Features

Current Rating (Amps)

5.2A per Contact

Contact Material

Phosphor Bronze

Mfr

Samtec Inc.

Series

ESW

Contact Shape

Square

Base Product Number

ESW-120

Insulation Height

0.735" (18.67mm)

Operating Temperature

-55°C ~ 125°C

Insulation Material

Liquid Crystal Polymer (LCP)
