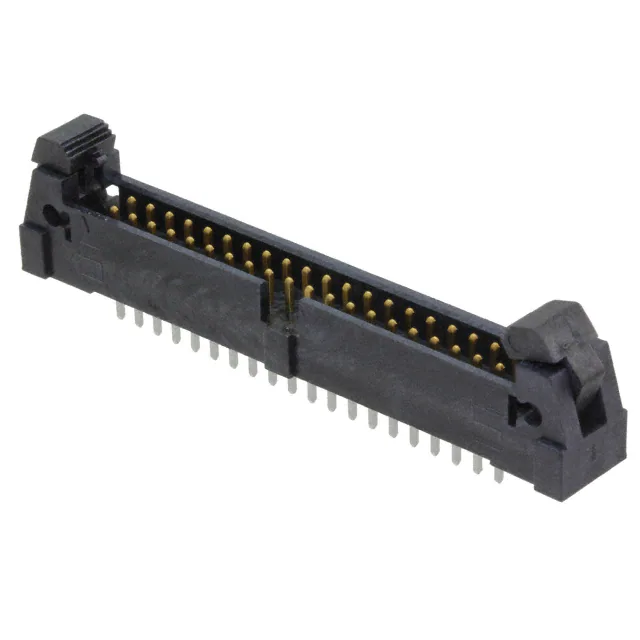

EHT-120-01-F-D

Product Name EHT-120-01-F-D

Manufacturer Samtec Inc.

Describe CONN HEADER VERT 40POS 2MM

Classification: Rectangular Connectors - Headers, Male Pins

Datesheet eht.pdf
eht-1xx-01-xx-d-xx-xx-x-xx-xx-mkt.pdf

Stock 9999

Customer Reference

CONN HEADER VERT 40POS 2MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Voltage Rating

Number of Positions

Contact Finish - Post

Tin

Mounting Type

Through Hole

Current Rating (Amps)

Product Status

Active

Contact Type

Male Pin

Pitch - Mating

0.079" (2.00mm)

Fastening Type

Latch Lock/Eject Hooks

Contact Length - Mating

0.120" (3.05mm)

Overall Contact Length

Insulation Color

Black

Contact Finish Thickness - Post

Base Product Number

EHT-120

Series

EHT

Connector Type

Header

Shrouding

Shrouded - 4 Wall

Insulation Material

Liquid Crystal Polymer (LCP)

Material Flammability Rating

UL94 V-0

Number of Rows

Style

Board to Cable/Wire

Termination

Solder

Applications

Number of Positions Loaded

All

Insulation Height

0.370" (9.40mm)

Features

Keying Slot

Operating Temperature

-55°C ~ 125°C

Mfr

Samtec Inc.

Contact Finish - Mating

Gold

Mated Stacking Heights

Package

Tube

Row Spacing - Mating

0.079" (2.00mm)

Contact Shape

Square

Contact Finish Thickness - Mating

3.00µin (0.076µm)

Contact Material

Phosphor Bronze

Contact Length - Post

0.114" (2.90mm)

Ingress Protection
