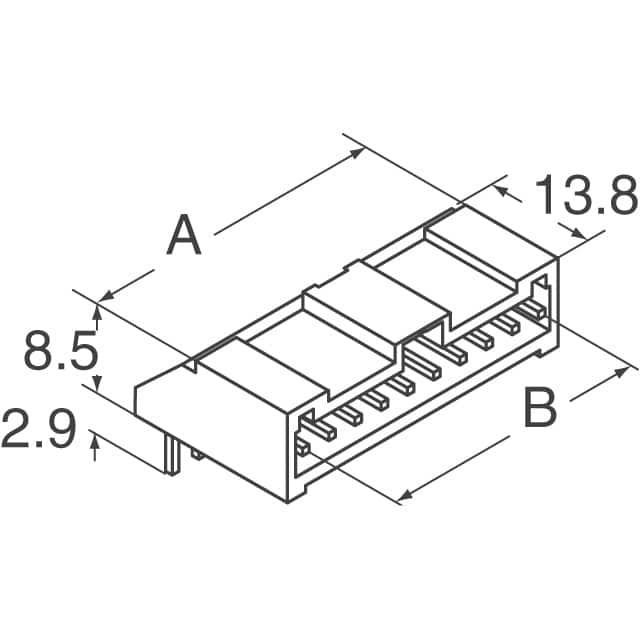

DF1E-5P-2-5DS-05

Product Name DF1E-5P-2-5DS-05

Manufacturer Hirose Electric Co Ltd

Describe CONN HEADER R/A 5POS 2.5MM

Classification: Headers, Male Pins

Datesheet DF1E_Series.pdf
DF1E-xP-2.5DS(05)_Drawing.pdf
DF1E-xP-2.5DS(05)_Spec.pdf

Stock 9999

Customer Reference

CONN HEADER R/A 5POS 2.5MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Mfr

Hirose Electric Co Ltd

Number of Rows

Contact Shape

Square

Contact Finish - Post

Tin

Insulation Material

Polyamide (PA), Nylon

Features

Insulation Color

Natural

Voltage Rating

Style

Board to Cable/Wire

Contact Finish Thickness - Mating

39.4µin (1.00µm)

Current Rating (Amps)

Mated Stacking Heights

Contact Finish Thickness - Post

Connector Type

Header

Operating Temperature

-35°C ~ 85°C

Package

Bulk

Product Status

Obsolete

Number of Positions Loaded

All

Shrouding

Shrouded - 4 Wall

Termination

Solder

Contact Length - Post

0.114" (2.90mm)

Contact Material

Brass

Contact Type

Male Pin

Row Spacing - Mating

Ingress Protection

Material Flammability Rating

UL94 V-0

Number of Positions

Contact Length - Mating

0.177" (4.50mm)

Series

DF1E

Mounting Type

Through Hole, Right Angle

Insulation Height

0.315" (8.00mm)

Contact Finish - Mating

Tin

Applications

Pitch - Mating

0.098" (2.50mm)

Fastening Type

Latch Holder

Overall Contact Length
