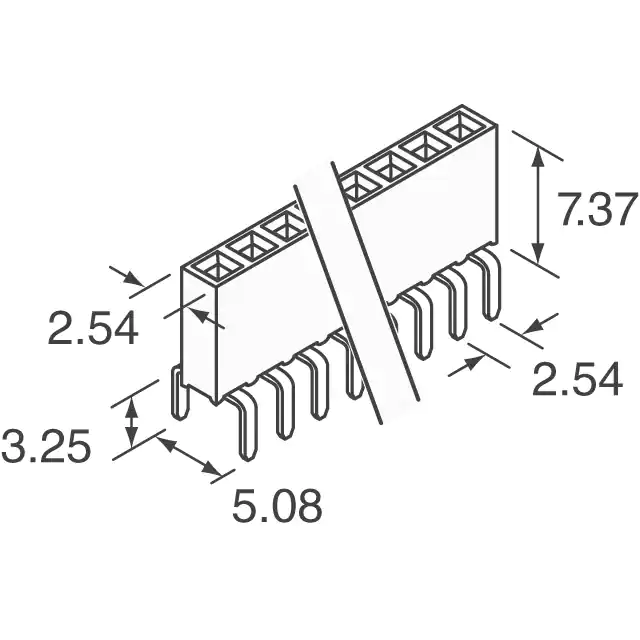

BCS-125-L-S-PE

Product Name BCS-125-L-S-PE

Manufacturer Samtec Inc.

Describe CONN RCPT 25POS 0.1 GOLD PCB

Classification: Rectangular Connectors - Headers, Receptacles, Female Sockets

Datesheet bcs-1xx-xxx-x-xx-xxx%20footprint.pdf
bcs-1xx-xxx-x-xx-xxx-mkt.pdf
bcs.pdf

Stock 9999

Customer Reference

CONN RCPT 25POS 0.1 GOLD PCB

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Contact Type

Female Socket

Ingress Protection

Series

Tiger Claw™ BCS

Operating Temperature

-55°C ~ 125°C

Mfr

Samtec Inc.

Product Status

Active

Style

Board to Board

Fastening Type

Push-Pull

Contact Material

Phosphor Bronze

Package

Tube

Pitch - Mating

0.100" (2.54mm)

Contact Finish Thickness - Mating

10.0µin (0.25µm)

Insulation Height

0.290" (7.37mm)

Connector Type

Receptacle, Pass Through

Number of Positions

Number of Rows

Termination

Solder

Current Rating (Amps)

4.6A per Contact

Contact Finish - Post

Tin

Mated Stacking Heights

Contact Finish Thickness - Post

Insulation Color

Black

Material Flammability Rating

UL94 V-0

Contact Shape

Square

Mounting Type

Through Hole

Features

Base Product Number

BCS-125

Contact Finish - Mating

Gold

Contact Length - Post

0.128" (3.25mm)

Applications

Insulation Material

Liquid Crystal Polymer (LCP), Glass Filled

Number of Positions Loaded

All

Row Spacing - Mating

Voltage Rating

475VAC
