6-534998-8

Product Name 6-534998-8

Manufacturer TE Connectivity AMP Connectors

Describe CONN RCPT 36POS 0.1 GOLD PCB

Classification: Headers, Receptacles, Female Sockets

Datesheet DDEController?Action=srchrtrv&DocNm=534998&DocType=Customer+Drawing&DocLang=English

Stock 9999

Customer Reference

CONN RCPT 36POS 0.1 GOLD PCB

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Pitch - Mating

0.100" (2.54mm)

Operating Temperature

-65°C ~ 125°C

Mounting Type

Through Hole

Termination

Solder

Contact Finish - Mating

Gold

Insulation Material

Thermoplastic, Glass Filled

Contact Finish Thickness - Post

150.0µin (3.81µm)

Mfr

TE Connectivity AMP Connectors

Contact Type

Female Socket

Number of Positions

Insulation Height

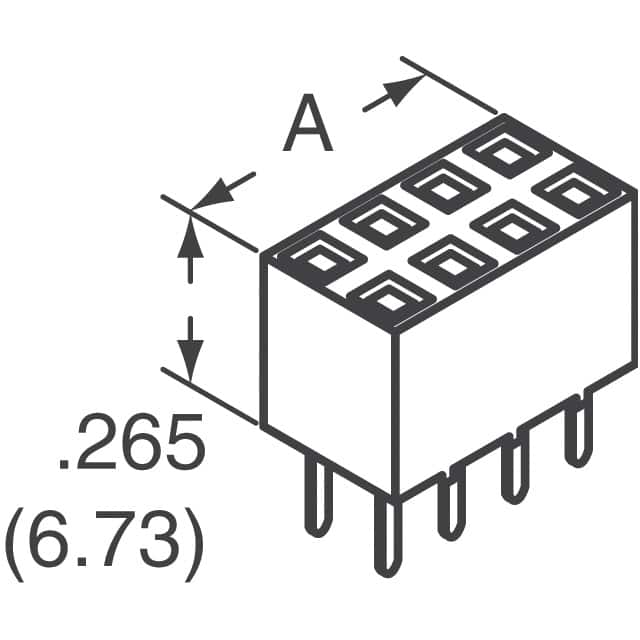

0.265" (6.73mm)

Material Flammability Rating

UL94 V-0

Current Rating (Amps)

Product Status

Discontinued at Digi-Key

Number of Rows

Applications

Package

Tube

Connector Type

Receptacle

Fastening Type

Push-Pull

Style

Board to Board or Cable

Row Spacing - Mating

0.100" (2.54mm)

Contact Finish Thickness - Mating

30.0µin (0.76µm)

Contact Length - Post

0.125" (3.18mm)

Ingress Protection

Insulation Color

Black

Contact Shape

Square

Series

AMPMODU Mod IV

Voltage Rating

Number of Positions Loaded

All

Mated Stacking Heights

Base Product Number

534998

Contact Finish - Post

Tin

Features

Contact Material

Phosphor Bronze
