5225059-3
5225059-3
Favorite Products

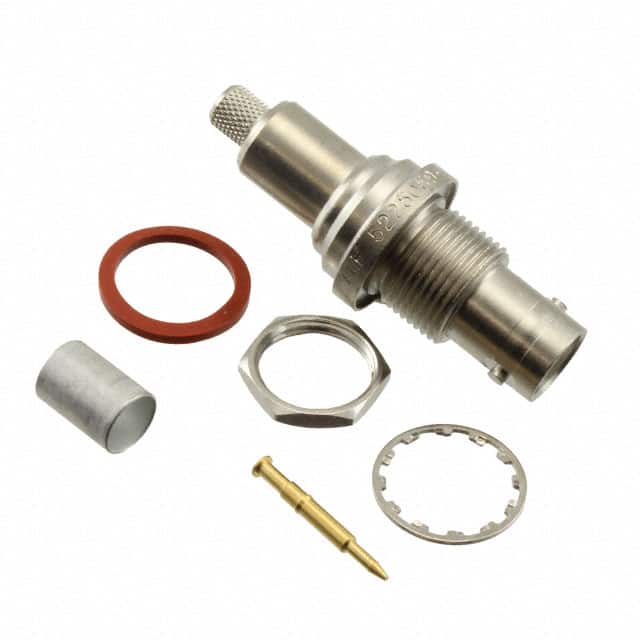

5225059-3
5225059-3
TE Connectivity AMP Connectors
CONN SHV JACK STR CRIMP
Coaxial Connector (RF) Assemblies
DDEController?Action=srchrtrv&DocNm=5225059&DocType=Customer+Drawing&DocLang=English
9999
CONN SHV JACK STR CRIMP
9999 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Insertion Loss
-
Series
Coaxicon
Package
Bulk
Product Status
Obsolete
Contact Termination
Crimp
Features
-
Dielectric Material
Polytetrafluoroethylene (PTFE)
Base Product Number
5225059
Mfr
TE Connectivity AMP Connectors
Center Contact Material
-
Body Material
-
Connector Type
Jack, Male Pin
Shield Termination
Crimp
Body Finish
Nickel
Operating Temperature
-65°C ~ 200°C
Number of Ports
1
Includes
6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Voltage Rating
5000 V
Center Contact Plating
Gold
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Front Side Nut
Ingress Protection
-
Connector Style
SHV
Impedance
Non-Constant
Cable Group
RG-59, 59A, 59B, 62, 62A, 62B, 124, 140, 210
Fastening Type
Bayonet Lock
