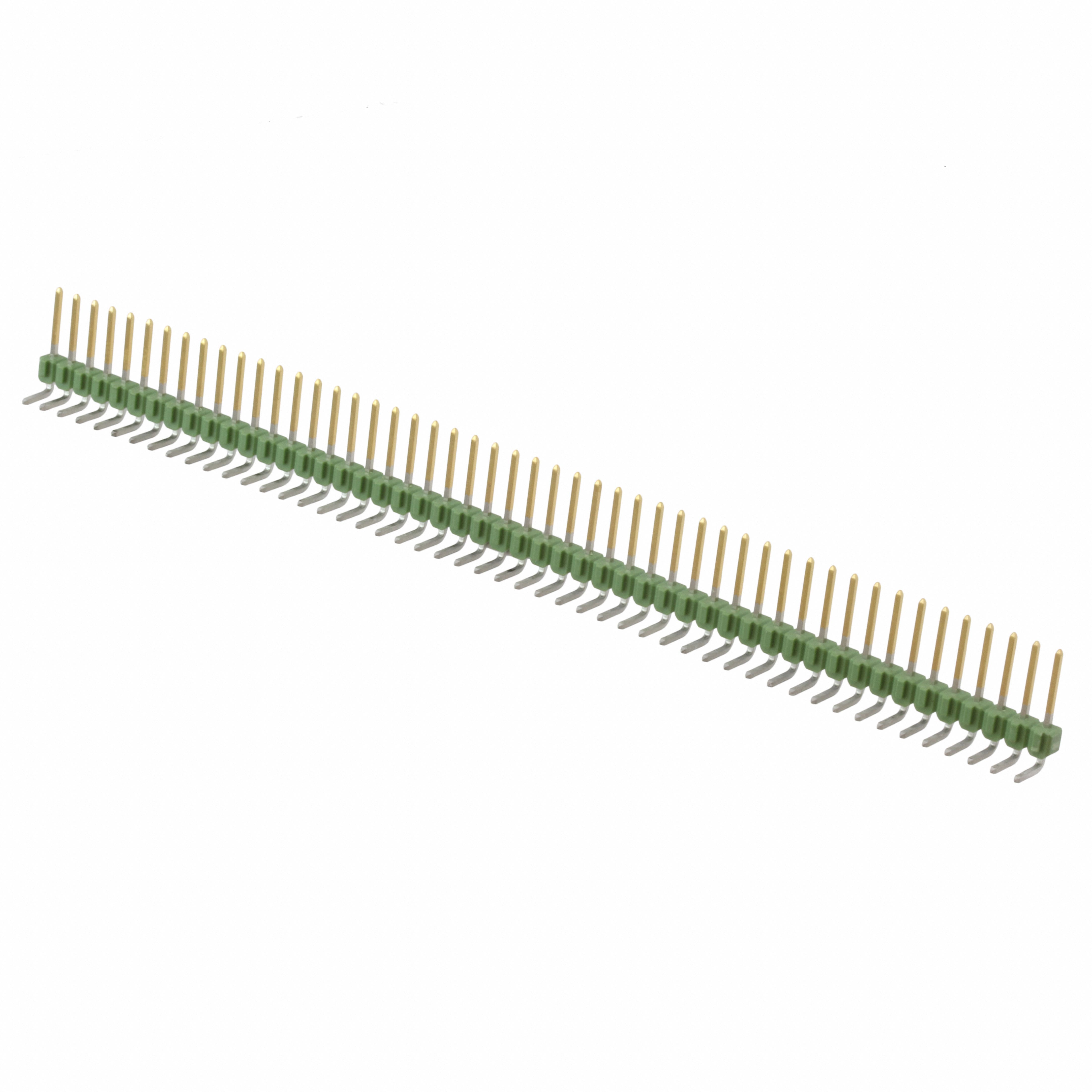

5-826654-0

Product Name 5-826654-0

Manufacturer TE Connectivity AMP Connectors

Describe CONN HEADER R/A 50POS 2.54MM

Classification: Headers, Male Pins

Datesheet DDEController?Action=srchrtrv&DocNm=826629&DocType=Customer+Drawing&DocLang=English

Stock 9999

Customer Reference

CONN HEADER R/A 50POS 2.54MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Contact Length - Post

0.126" (3.20mm)

Current Rating (Amps)

Pitch - Mating

0.100" (2.54mm)

Mfr

TE Connectivity AMP Connectors

Row Spacing - Mating

Contact Shape

Square

Insulation Height

0.120" (3.05mm)

Connector Type

Header, Breakaway

Operating Temperature

-65°C ~ 105°C

Applications

Contact Type

Male Pin

Number of Positions

Shrouding

Unshrouded

Voltage Rating

Contact Material

Brass

Contact Length - Mating

0.315" (8.00mm)

Overall Contact Length

Number of Positions Loaded

All

Style

Board to Board or Cable

Termination

Solder

Fastening Type

Push-Pull

Contact Finish - Post

Tin

Insulation Color

Green

Series

AMPMODU Mod II

Package

Bulk

Number of Rows

Contact Finish - Mating

Gold

Features

Contact Finish Thickness - Post

118.1µin (3.00µm)

Base Product Number

826654

Material Flammability Rating

UL94 V-0

Product Status

Active

Mounting Type

Through Hole, Right Angle

Contact Finish Thickness - Mating

3.90µin (0.099µm)

Insulation Material

Polybutylene Terephthalate (PBT)

Ingress Protection

Mated Stacking Heights
