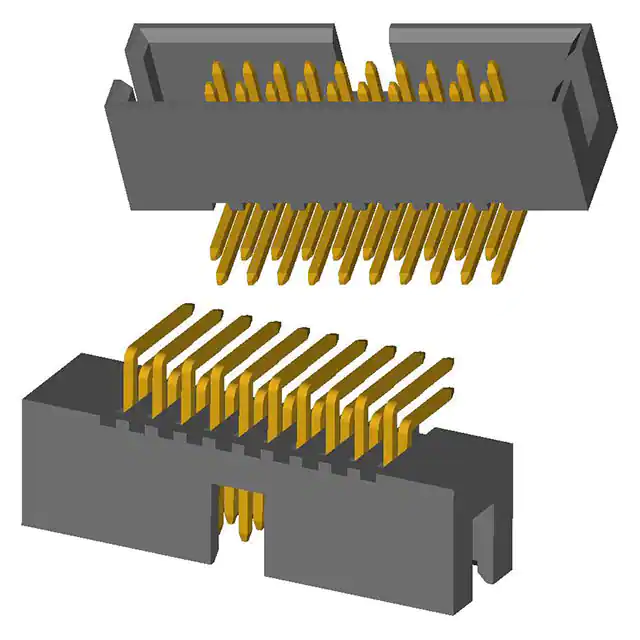

3221-24-0200-00

Product Name 3221-24-0200-00

Manufacturer CNC Tech

Describe CONN HEADER R/A 24POS 1.27MM

Classification: Rectangular Connectors - Headers, Male Pins

Datesheet 3221-XX-0200-00_.pdf
idcmatching2.pdf
matingchart.pdf
idcexplain.pdf

Stock 9999

Customer Reference

CONN HEADER R/A 24POS 1.27MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Connector Type

Header

Style

Board to Cable/Wire

Contact Finish Thickness - Mating

Flash

Fastening Type

Push-Pull

Number of Positions

Contact Length - Mating

Contact Finish - Post

Material Flammability Rating

UL94 V-0

Mfr

CNC Tech

Contact Shape

Square

Voltage Rating

Number of Rows

Insulation Height

0.201" (5.10mm)

Contact Finish - Mating

Gold

Operating Temperature

-40°C ~ 105°C

Mated Stacking Heights

Applications

Series

Termination

Solder

Contact Length - Post

0.083" (2.11mm)

Current Rating (Amps)

Pitch - Mating

0.050" (1.27mm)

Shrouding

Shrouded - 4 Wall

Overall Contact Length

Insulation Color

Contact Material

Brass

Contact Finish Thickness - Post

Package

Tray

Product Status

Obsolete

Mounting Type

Through Hole, Right Angle

Insulation Material

Polyamide (PA6T), Nylon 6T

Ingress Protection

Contact Type

Male Pin

Row Spacing - Mating

0.050" (1.27mm)

Number of Positions Loaded

All

Features

Keying Slot

Base Product Number

3221-24
