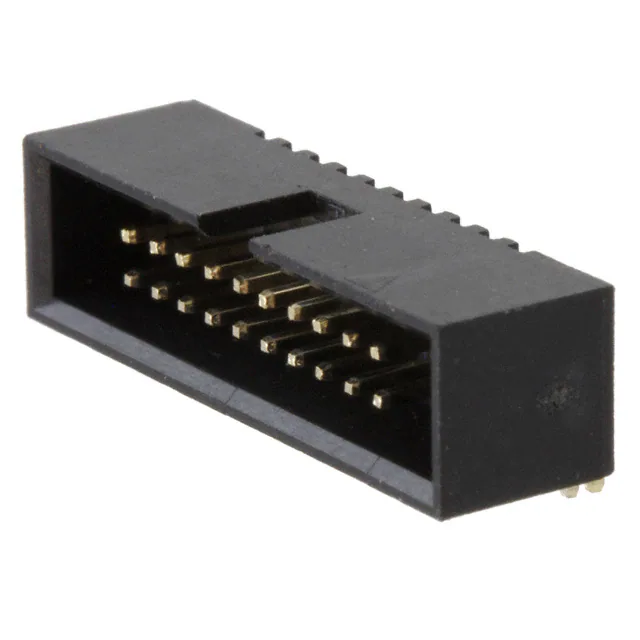

3220-20-0200-00

Product Name 3220-20-0200-00

Manufacturer CNC Tech

Describe CONN HEADER R/A 20POS 1.27MM

Classification: Rectangular Connectors - Headers, Male Pins

Datesheet 3220-XX-0200-00_.pdf
idcexplain.pdf
matingchart.pdf
idcmatching2.pdf

Stock 9999

Customer Reference

CONN HEADER R/A 20POS 1.27MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Style

Board to Cable/Wire

Overall Contact Length

Voltage Rating

Mfr

CNC Tech

Ingress Protection

Shrouding

Shrouded - 4 Wall

Fastening Type

Push-Pull

Contact Length - Mating

Applications

Base Product Number

3220-20

Insulation Height

0.201" (5.10mm)

Insulation Color

Pitch - Mating

0.050" (1.27mm)

Contact Finish - Post

Contact Material

Brass

Insulation Material

Polyamide (PA6T), Nylon 6T

Number of Positions

Number of Rows

Termination

Solder

Contact Shape

Square

Current Rating (Amps)

Product Status

Active

Contact Finish - Mating

Gold

Material Flammability Rating

UL94 V-0

Contact Finish Thickness - Post

Number of Positions Loaded

All

Operating Temperature

-40°C ~ 105°C

Series

Contact Type

Male Pin

Row Spacing - Mating

0.050" (1.27mm)

Contact Finish Thickness - Mating

Flash

Features

Connector Type

Header

Contact Length - Post

0.083" (2.11mm)

Mated Stacking Heights

Package

Tray

Mounting Type

Through Hole, Right Angle
