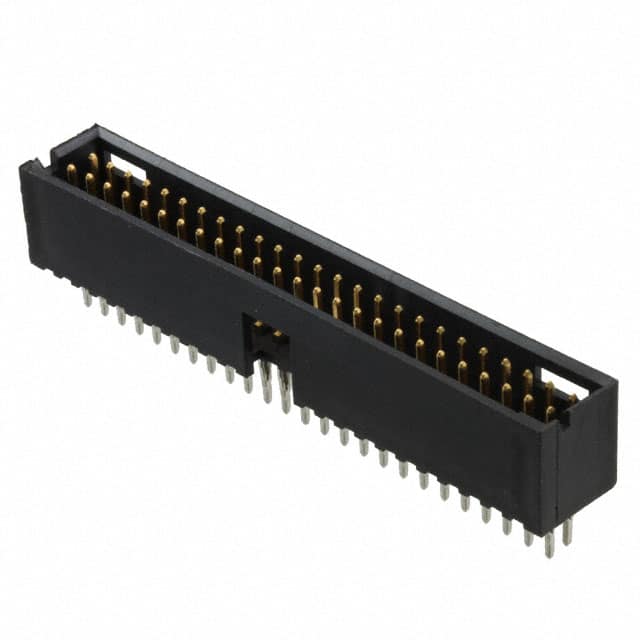

2-102699-3

Product Name 2-102699-3

Manufacturer TE Connectivity AMP Connectors

Describe CONN HEADER VERT 50POS 2.54MM

Classification: Headers, Male Pins

Datesheet DDEController?Action=srchrtrv&DocNm=102699&DocType=Customer+Drawing&DocLang=English

Stock 9999

Customer Reference

CONN HEADER VERT 50POS 2.54MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Ingress Protection

Contact Length - Post

0.250" (6.35mm)

Contact Finish - Mating

Gold

Mated Stacking Heights

Contact Finish Thickness - Post

100.0µin (2.54µm)

Base Product Number

102699

Pitch - Mating

0.100" (2.54mm)

Number of Rows

Contact Finish Thickness - Mating

30.0µin (0.76µm)

Features

Insulation Color

Black

Contact Type

Male Pin

Insulation Material

Thermoplastic

Number of Positions

Row Spacing - Mating

0.100" (2.54mm)

Mounting Type

Through Hole

Series

AMPMODU Mod II

Style

Board to Board or Cable

Fastening Type

Detent Lock

Voltage Rating

Applications

Connector Type

Header

Termination

Press-Fit, Solder

Contact Length - Mating

0.320" (8.13mm)

Insulation Height

0.440" (11.18mm)

Contact Finish - Post

Tin-Lead

Package

Tray

Contact Shape

Square

Contact Material

Copper Alloy

Operating Temperature

-55°C ~ 105°C

Material Flammability Rating

UL94 V-0

Mfr

TE Connectivity AMP Connectors

Shrouding

Shrouded - 4 Wall

Product Status

Discontinued at Digi-Key

Number of Positions Loaded

All

Overall Contact Length

0.660" (16.76mm)

Current Rating (Amps)
