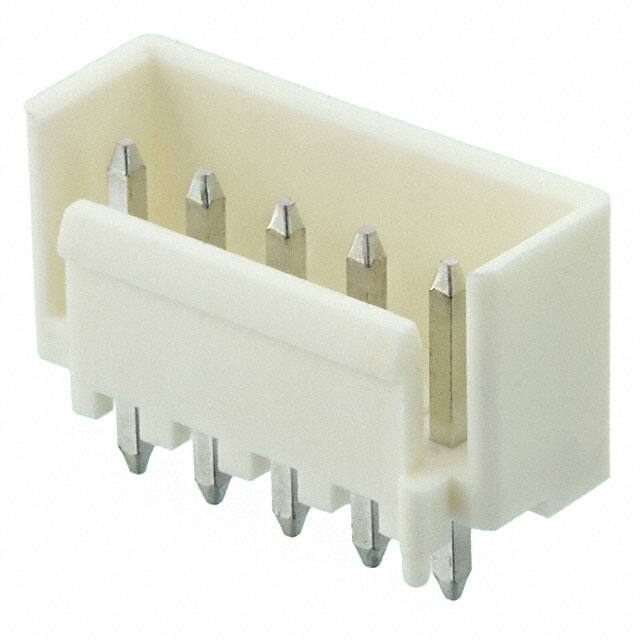

1744427-5

Product Name 1744427-5

Manufacturer TE Connectivity AMP Connectors

Describe CONN HEADER VERT 5POS 3.96MM

Classification: Headers, Male Pins

Datesheet DDEController?Action=srchrtrv&DocNm=1744427&DocType=Customer+Drawing&DocLang=English

Stock 9999

Customer Reference

CONN HEADER VERT 5POS 3.96MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Number of Positions Loaded

All

Fastening Type

Friction Lock

Voltage Rating

250VAC

Contact Type

Male Pin

Termination

Solder

Insulation Height

0.472" (12.00mm)

Insulation Color

Mated Stacking Heights

Contact Finish Thickness - Post

39.4µin (1.00µm)

Overall Contact Length

0.567" (14.40mm)

Operating Temperature

-25°C ~ 105°C

Current Rating (Amps)

7.5A

Package

Bulk

Applications

General Purpose, Industrial, Lighting

Base Product Number

1744427

Mounting Type

Through Hole

Contact Material

Brass

Features

Board Guide, Glow Wire Compliant

Series

Economy Power

Number of Positions

Contact Finish - Mating

Tin

Ingress Protection

Material Flammability Rating

UL94 V-2

Pitch - Mating

0.156" (3.96mm)

Style

Board to Cable/Wire

Shrouding

Shrouded - 4 Wall

Contact Finish Thickness - Mating

39.4µin (1.00µm)

Number of Rows

Row Spacing - Mating

Contact Length - Post

0.142" (3.60mm)

Product Status

Active

Contact Shape

Square

Contact Finish - Post

Tin

Mfr

TE Connectivity AMP Connectors

Connector Type

Header

Contact Length - Mating

0.306" (7.77mm)

Insulation Material

Polyamide (PA), Nylon, Glass Filled
