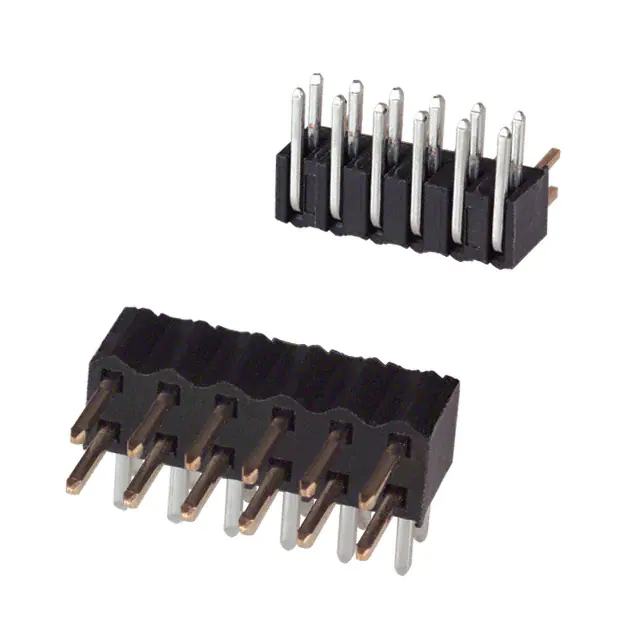

151212-7422-TB

Product Name 151212-7422-TB

Manufacturer 3M

Describe CONN HEADER R/A 12POS 2MM

Classification: Rectangular Connectors - Headers, Male Pins

Datesheet 1512_Series_Rev_Mar_2017.pdf
1512%20Series.pdf

Stock 9999

Customer Reference

CONN HEADER R/A 12POS 2MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Series

1512

Shrouding

Unshrouded

Voltage Rating

Pitch - Mating

0.079" (2.00mm)

Number of Positions Loaded

All

Contact Length - Post

0.118" (3.00mm)

Product Status

Obsolete

Connector Type

Header

Operating Temperature

-55°C ~ 105°C

Contact Type

Male Pin

Termination

Solder

Overall Contact Length

Applications

Number of Rows

Ingress Protection

Row Spacing - Mating

0.079" (2.00mm)

Insulation Height

0.165" (4.20mm)

Insulation Color

Black

Base Product Number

151212

Package

Bulk

Contact Finish - Post

Tin-Lead

Contact Material

Copper Alloy

Insulation Material

Liquid Crystal Polymer (LCP), Glass Filled

Style

Board to Board or Cable

Mounting Type

Through Hole, Right Angle

Contact Length - Mating

0.152" (3.86mm)

Contact Shape

Square

Material Flammability Rating

UL94 V-0

Number of Positions

Current Rating (Amps)

Contact Finish Thickness - Post

200.0µin (5.08µm)

Mfr

Fastening Type

Push-Pull

Contact Finish - Mating

Gold

Contact Finish Thickness - Mating

30.0µin (0.76µm)

Features

Mated Stacking Heights
