0705530115

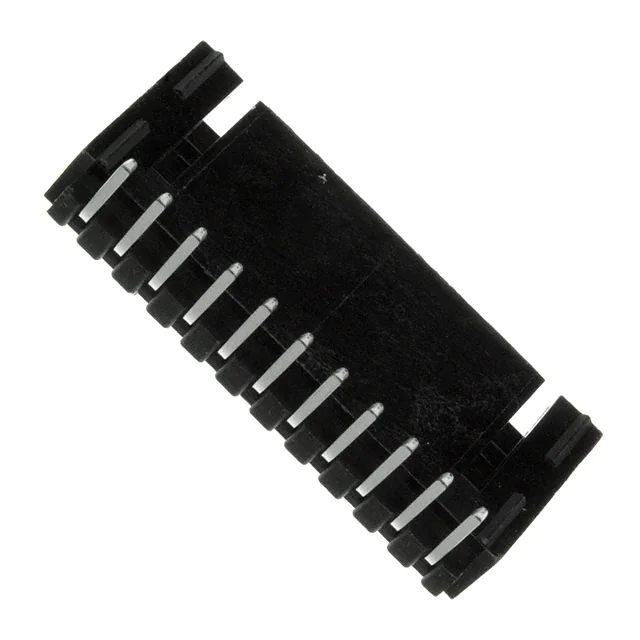

Product Name 0705530115

Manufacturer Molex

Describe CONN HEADER R/A 11POS 2.54MM

Classification: Rectangular Connectors - Headers, Male Pins

Datesheet 705530106_sd.pdf
PS-70400.pdf

Stock 9999

Customer Reference

CONN HEADER R/A 11POS 2.54MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Contact Finish Thickness - Mating

30.0µin (0.76µm)

Fastening Type

Latch Holder

Material Flammability Rating

UL94 V-0

Pitch - Mating

0.100" (2.54mm)

Row Spacing - Mating

Contact Length - Mating

0.240" (6.10mm)

Contact Finish Thickness - Post

74.8µin (1.90µm)

Contact Shape

Square

Contact Finish - Post

Tin

Insulation Color

Black

Contact Length - Post

0.130" (3.30mm)

Number of Rows

Insulation Material

Polyester, Glass Filled

Operating Temperature

-40°C ~ 105°C

Current Rating (Amps)

Applications

Automotive, General Purpose, Industrial, Medical

Package

Tube

Connector Type

Header

Contact Material

Phosphor Bronze

Mfr

Molex

Shrouding

Shrouded - 4 Wall

Mounting Type

Through Hole, Right Angle

Overall Contact Length

Contact Finish - Mating

Gold

Features

Base Product Number

070553

Contact Type

Male Pin

Ingress Protection

Voltage Rating

250V

Style

Board to Cable/Wire

Series

SL 70553

Product Status

Active

Number of Positions

Number of Positions Loaded

All

Termination

Solder

Insulation Height

0.215" (5.45mm)

Mated Stacking Heights
