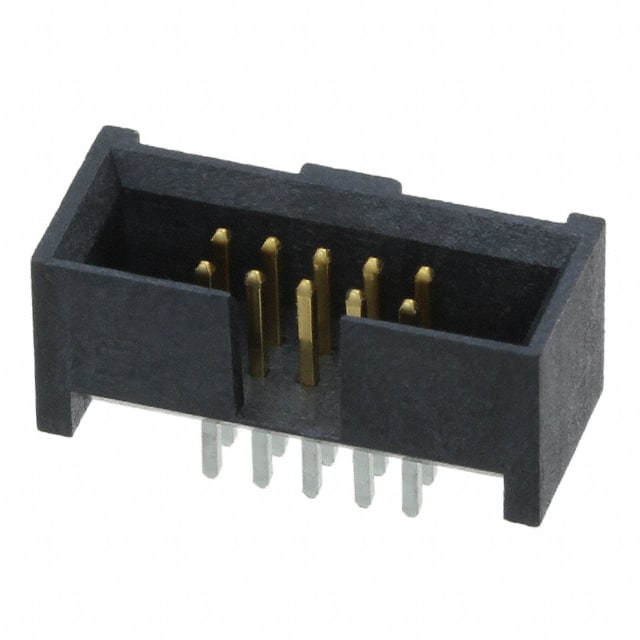

SHF-105-01-L-D-TH-LC-TR

Product Name SHF-105-01-L-D-TH-LC-TR

Manufacturer Samtec Inc.

Describe CONN HEADER VERT 10POS 1.27MM

Classification: Headers, Male Pins

Datesheet

Stock 9999

Customer Reference

CONN HEADER VERT 10POS 1.27MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Fastening Type

Push-Pull

Overall Contact Length

Contact Finish - Mating

Gold

Mfr

Samtec Inc.

Product Status

Active

Mounting Type

Through Hole

Termination

Solder

Contact Shape

Square

Contact Finish - Post

Tin

Features

Board Lock, Keying Slot

Ingress Protection

Base Product Number

SHF-105

Shrouding

Shrouded - 4 Wall

Operating Temperature

-55°C ~ 125°C

Mated Stacking Heights

Contact Finish Thickness - Mating

10.0µin (0.25µm)

Current Rating (Amps)

Applications

Pitch - Mating

0.050" (1.27mm)

Number of Positions Loaded

All

Contact Type

Male Pin

Number of Rows

Row Spacing - Mating

0.050" (1.27mm)

Contact Length - Post

0.075" (1.91mm)

Insulation Material

Liquid Crystal Polymer (LCP)

Voltage Rating

Package

Tape & Reel (TR)

Number of Positions

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Insulation Color

Black

Series

SHF

Contact Length - Mating

0.120" (3.05mm)

Contact Finish Thickness - Post

Connector Type

Header

Insulation Height

0.210" (5.33mm)

Contact Material

Phosphor Bronze
