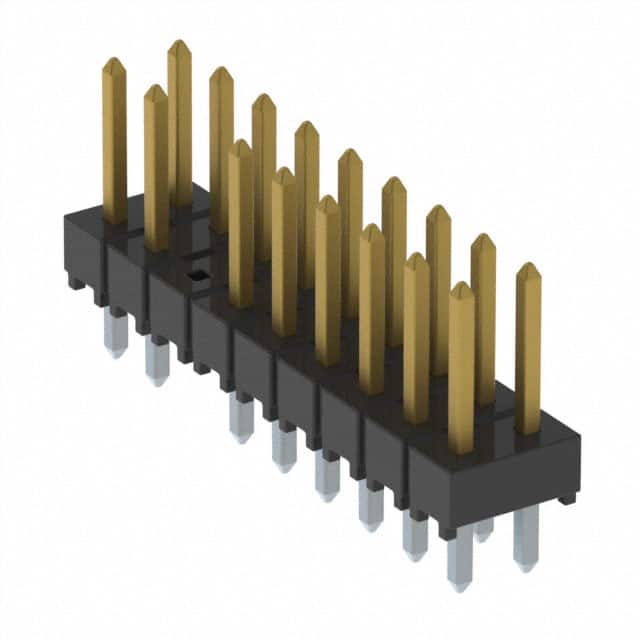

HTSW-109-07-L-D-014

Product Name HTSW-109-07-L-D-014

Manufacturer Samtec Inc.

Describe CONN HEADER VERT 18POS 2.54MM

Classification: Headers, Male Pins

Datesheet

Stock 9999

Customer Reference

CONN HEADER VERT 18POS 2.54MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Applications

Row Spacing - Mating

0.100" (2.54mm)

Mfr

Samtec Inc.

Style

Board to Board or Cable

Contact Shape

Square

Features

Number of Rows

Contact Length - Post

0.100" (2.54mm)

Insulation Color

Natural

Overall Contact Length

0.430" (10.92mm)

Operating Temperature

-55°C ~ 125°C

Product Status

Active

Pitch - Mating

0.100" (2.54mm)

Insulation Height

0.100" (2.54mm)

Contact Finish Thickness - Mating

10.0µin (0.25µm)

Contact Type

Male Pin

Number of Positions

Contact Length - Mating

0.230" (5.84mm)

Material Flammability Rating

UL94 V-0

Voltage Rating

Series

HTSW

Package

Bulk

Connector Type

Header

Fastening Type

Push-Pull

Ingress Protection

Termination

Solder

Contact Material

Phosphor Bronze

Contact Finish Thickness - Post

Mounting Type

Through Hole

Insulation Material

Liquid Crystal Polymer (LCP)

Base Product Number

HTSW-109

Number of Positions Loaded

Shrouding

Unshrouded

Contact Finish - Mating

Gold

Contact Finish - Post

Tin

Current Rating (Amps)

Varies by Wire Gauge

Mated Stacking Heights
