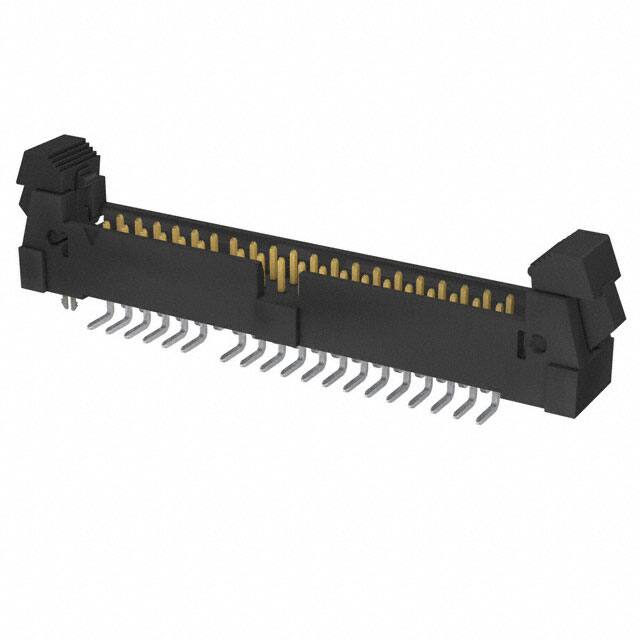

EHT-120-01-S-D-SM-LC-13-K

Product Name EHT-120-01-S-D-SM-LC-13-K

Manufacturer Samtec Inc.

Describe CONN HEADER SMD 40POS 2MM

Classification: Rectangular Connectors - Headers, Male Pins

Datesheet

Stock 9999

Customer Reference

CONN HEADER SMD 40POS 2MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Mfr

Samtec Inc.

Connector Type

Header

Insulation Height

0.370" (9.40mm)

Fastening Type

Latch Lock/Eject Hooks

Contact Type

Male Pin

Style

Board to Cable/Wire

Current Rating (Amps)

Applications

Number of Positions

Number of Positions Loaded

Mounting Type

Surface Mount

Contact Finish - Post

Tin

Contact Material

Phosphor Bronze

Features

Board Lock, Keying Slot, Pick and Place

Voltage Rating

Termination

Solder

Ingress Protection

Mated Stacking Heights

Pitch - Mating

0.079" (2.00mm)

Number of Rows

Contact Shape

Square

Contact Finish - Mating

Gold

Contact Finish Thickness - Post

Package

Tube

Product Status

Active

Contact Length - Mating

0.120" (3.05mm)

Insulation Material

Liquid Crystal Polymer (LCP)

Series

EHT

Operating Temperature

-55°C ~ 125°C

Insulation Color

Black

Row Spacing - Mating

0.079" (2.00mm)

Shrouding

Shrouded - 4 Wall

Contact Length - Post

Overall Contact Length

Contact Finish Thickness - Mating

30.0µin (0.76µm)

Material Flammability Rating

UL94 V-0

Base Product Number

EHT-120
