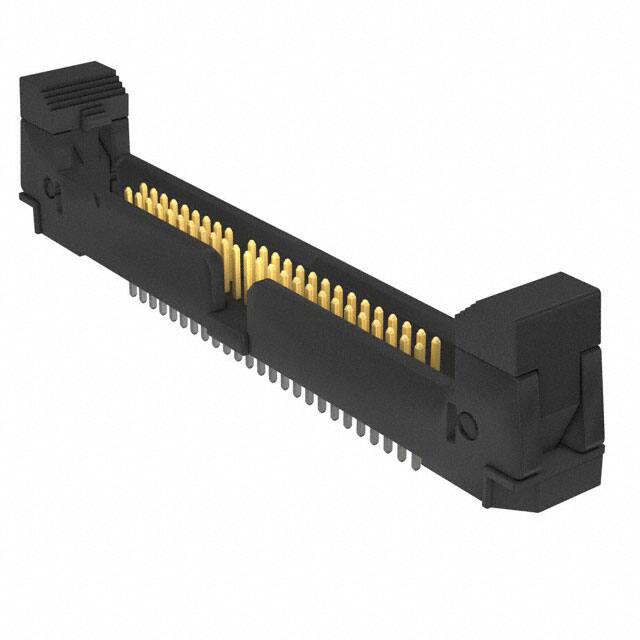

EHF-125-01-L-D-20

Product Name EHF-125-01-L-D-20

Manufacturer Samtec Inc.

Describe CONN HEADER VERT 50POS 1.27MM

Classification: Rectangular Connectors - Headers, Male Pins

Datesheet

Stock 9999

Customer Reference

CONN HEADER VERT 50POS 1.27MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Number of Rows

Row Spacing - Mating

0.050" (1.27mm)

Contact Shape

Square

Voltage Rating

Mated Stacking Heights

Insulation Height

0.325" (8.25mm)

Contact Finish - Mating

Gold

Operating Temperature

-55°C ~ 125°C

Material Flammability Rating

Package

Tube

Pitch - Mating

0.050" (1.27mm)

Contact Length - Post

0.107" (2.71mm)

Contact Material

Phosphor Bronze

Applications

Style

Board to Cable/Wire

Shrouding

Shrouded - 4 Wall

Fastening Type

Latch Lock/Eject Hooks

Contact Finish Thickness - Post

Termination

Solder

Ingress Protection

Current Rating (Amps)

1.75A

Contact Finish Thickness - Mating

10.0µin (0.25µm)

Features

Keying Slot

Connector Type

Header

Number of Positions

Contact Finish - Post

Tin

Insulation Material

Liquid Crystal Polymer (LCP), Glass Filled

Base Product Number

EHF-125

Series

EHF

Contact Type

Male Pin

Number of Positions Loaded

Mounting Type

Through Hole

Contact Length - Mating

0.120" (3.05mm)

Insulation Color

Black

Mfr

Samtec Inc.

Product Status

Active

Overall Contact Length

0.350" (8.89mm)
