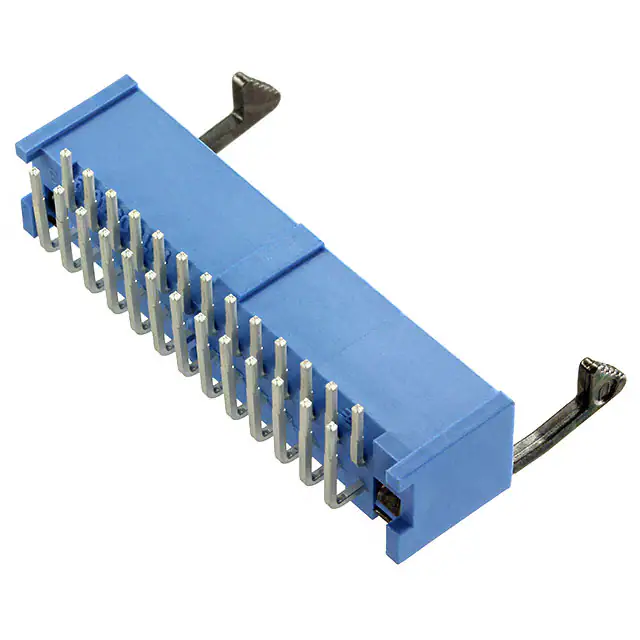

2-1761607-9

Product Name 2-1761607-9

Manufacturer TE Connectivity AMP Connectors

Describe CONN HEADER R/A 26POS 2.54MM

Classification: Rectangular Connectors - Headers, Male Pins

Datesheet DDEController?Action=srchrtrv&DocNm=1761607&DocType=Customer+Drawing&DocLang=English

Stock 9999

Customer Reference

CONN HEADER R/A 26POS 2.54MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Insulation Color

Blue

Pitch - Mating

0.100" (2.54mm)

Base Product Number

1761607

Connector Type

Header

Number of Rows

Voltage Rating

250VAC

Contact Finish Thickness - Post

100.0µin (2.54µm)

Applications

Product Status

Active

Row Spacing - Mating

0.100" (2.54mm)

Mounting Type

Through Hole, Right Angle

Contact Finish - Mating

Gold or Gold-Palladium

Mated Stacking Heights

Style

Board to Cable/Wire

Contact Length - Post

0.102" (2.60mm)

Material Flammability Rating

UL94 V-0

Number of Positions Loaded

All

Shrouding

Shrouded - 4 Wall

Contact Material

Phosphor Bronze

Series

AMP-Latch

Contact Type

Male Pin

Number of Positions

Termination

Solder

Insulation Height

0.362" (9.20mm)

Contact Finish - Post

Tin

Insulation Material

Polybutylene Terephthalate (PBT)

Package

Tube

Contact Length - Mating

0.237" (6.02mm)

Contact Finish Thickness - Mating

30.0µin (0.76µm)

Fastening Type

Latch Lock/Eject Hooks, Long

Overall Contact Length

Contact Shape

Square

Features

Keying Slot

Operating Temperature

-65°C ~ 105°C

Current Rating (Amps)

1A per Contact

Mfr

TE Connectivity AMP Connectors

Ingress Protection
