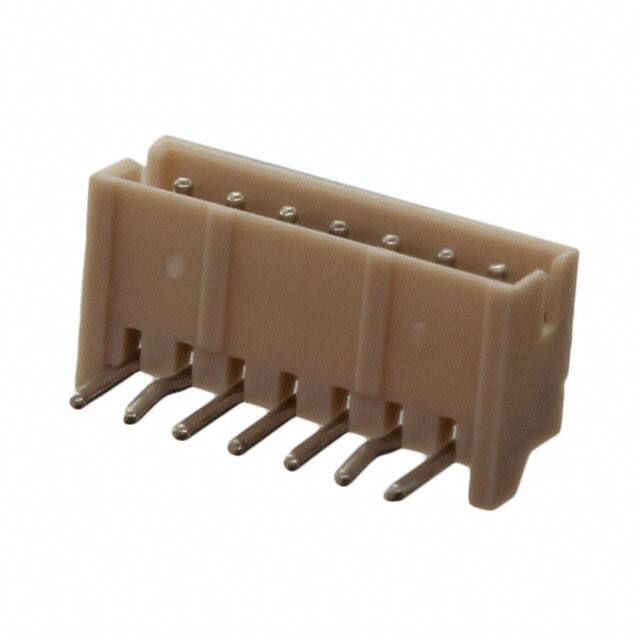

15SH-A-07-TR-SMT

Product Name 15SH-A-07-TR-SMT

Manufacturer Adam Tech

Describe CONN HEADER SMD R/A 7POS 1.5MM

Classification: Rectangular Connectors - Headers, Male Pins

Datesheet 15sh-a-xx-tr-smt-data-sheet.pdf

Stock 9999

Customer Reference

CONN HEADER SMD R/A 7POS 1.5MM

9999 In Stock

More quantities are on the way.

Product Attributes

Type PARAMETERS

Row Spacing - Mating

Overall Contact Length

Mfr

Adam Tech

Contact Finish Thickness - Mating

Ingress Protection

Product Status

Obsolete

Connector Type

Header

Pitch - Mating

0.059" (1.50mm)

Number of Rows

Termination

Solder

Contact Length - Post

Contact Finish - Post

Tin

Features

Solder Retention

Contact Finish Thickness - Post

Contact Type

Male Pin

Style

Board to Cable/Wire

Fastening Type

Friction Lock

Insulation Height

0.146" (3.70mm)

Insulation Color

Ivory

Contact Shape

Circular

Insulation Material

Polyamide (PA9T), Nylon 9T

Current Rating (Amps)

Voltage Rating

50VAC

Base Product Number

15SH-A

Package

Bag

Shrouding

Shrouded - 4 Wall

Mounting Type

Surface Mount, Right Angle

Contact Length - Mating

Mated Stacking Heights

Applications

Material Flammability Rating

UL94 V-0

Contact Finish - Mating

Tin

Operating Temperature

-25°C ~ 85°C

Series

15SH

Number of Positions

Number of Positions Loaded

All

Contact Material

Brass
